18mm Stainless Steel Angle Bar Container Racks 321 Angle Bar Metal
| Place of Origin | China |
|---|---|
| Brand Name | Chengjiu |
| Minimum Order Quantity | 100kg. We also can accept sample order. |
| Price | bargaining |
| Packaging Details | According to the customers' requirement |
| Delivery Time | Within 15-30 workdays after receiving deposit or L/C |
| Payment Terms | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability | 5000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Stainless Steel Angle Bar 316L 310s | Material | 201 304 316L 309 310s 2205 2507 |
|---|---|---|---|
| Product Level | Industrial Grade/hot Rolling, Food Grade/cold Rolling | Thickness | 3~9mm/4~12mm/4~19mm/6~19mm |
| Scope Of Application | Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc | Product Specification | Can Be Customized On Demand |
| High Light | 18mm Stainless Steel Angle Bar,321 Angle Bar Metal,Angle Bar Metal 18mm |
||
Product Description
18mm Stainless Steel Angle Bar Container Racks 321 Angle Bar Metal
Stainless steel Angle steel can be used as a connection between components. Widely used in a variety of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transport machinery, industrial furnaces, reaction towers, container racks and warehouse shelves.
2.Chemical composition and mechanical
| Chemical composition | ||||||||
| Material | C | Si | Mn | Cr | Ni | S | P | N |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤18.0-20.0 | ≤8.0-10.5 | ≤0.030 | ≤0.035 | ≤0.1 |
Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200
Stainless steel Angle steel specification list
| Angle of the side | thickness (mm) | ||||||
| A×Bmm | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20×20 | 0.894 | 1.13 | 1.38 | ||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | |||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | |||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | |||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | |||
| 45×45 | 2.12 | 2.76 | 3.4 | 4 | |||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | |||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.6 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10 | ||
| 80×80 | 7.37 | 8.5 | 9.61 | 10.7 | |||
| 90×90 | 8.33 | 9.65 | 11.9 | 12.2 | |||
| 100×100 | 9.28 | 10.8 | 12.2 | 13.6 | |||

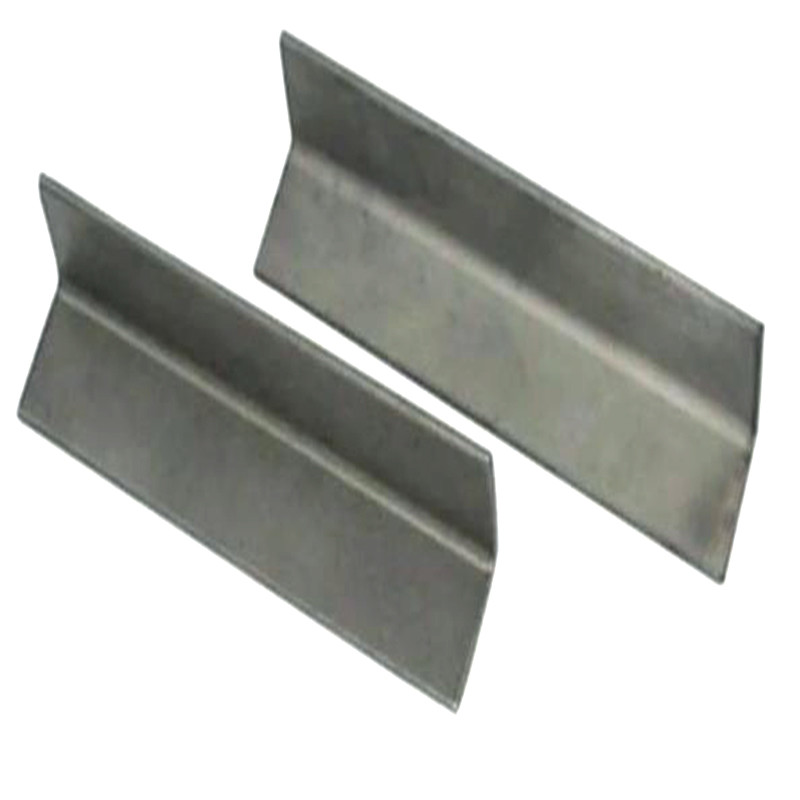

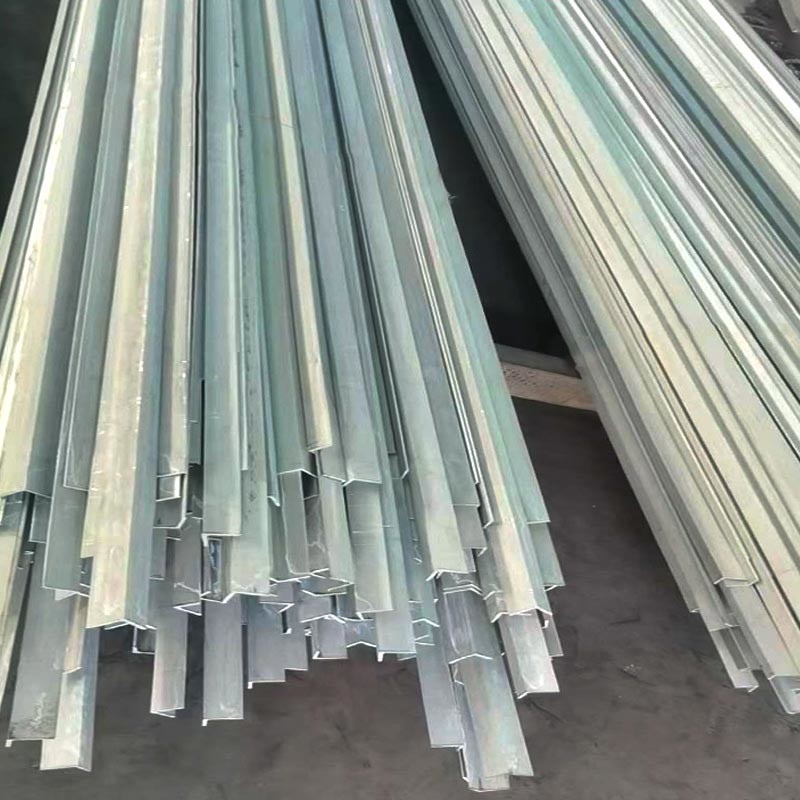

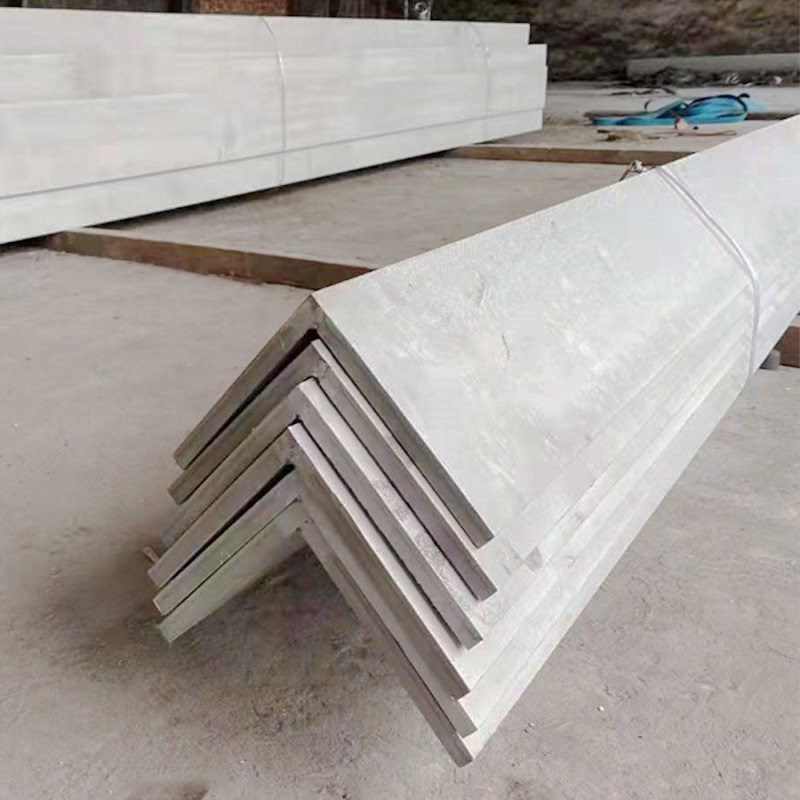

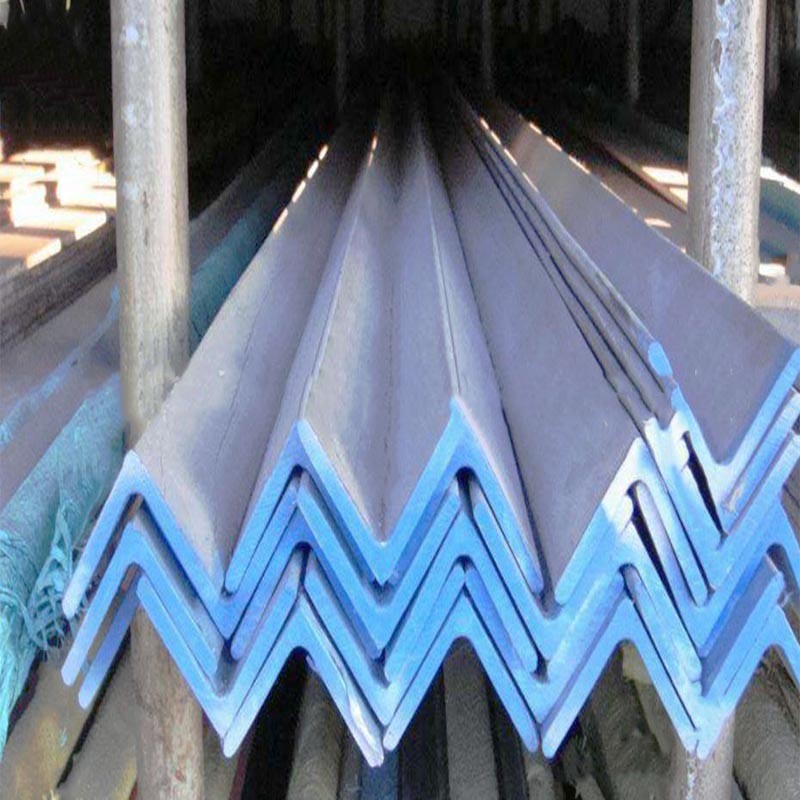

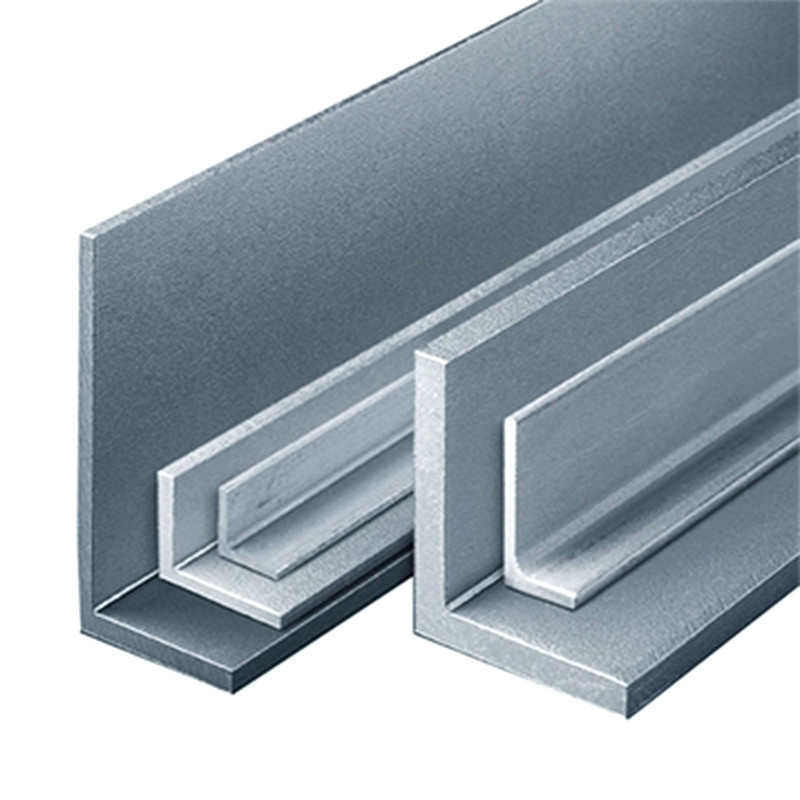

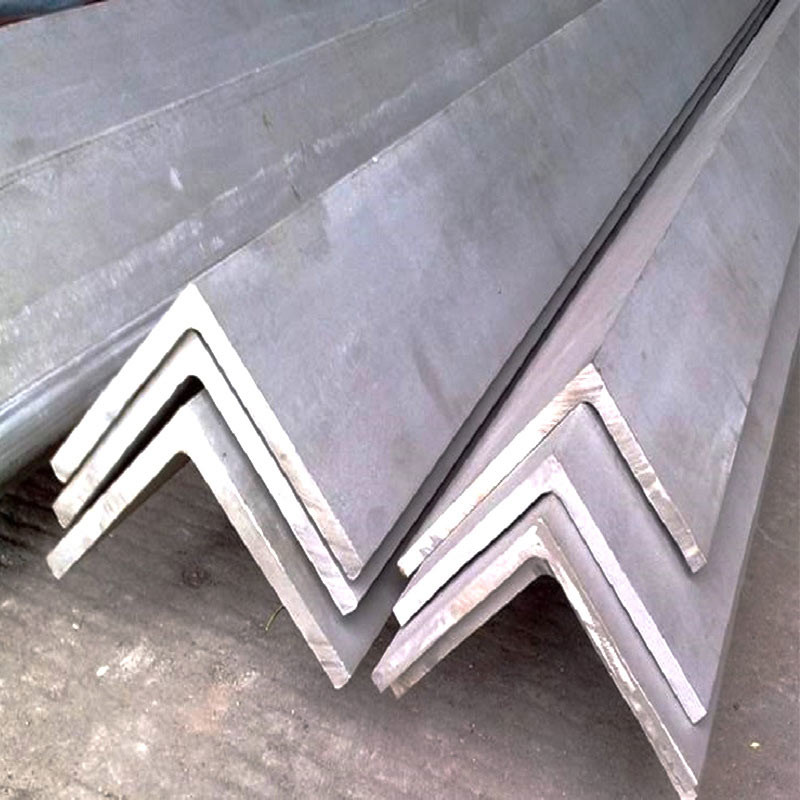

3.Product show
