Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm

  • Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm
  • Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm
  • Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm
  • Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm
Place of Origin China
Brand Name Chengjiu
Minimum Order Quantity 100kg. We also can accept sample order.
Price bargaining
Packaging Details According to the customers' requirement
Delivery Time Within 15-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel Angle Steel Material 201 304 316L 309 310s 2205 2507
Product Specification Can Be Customized On Demand Thickness 3~9mm/4~12mm/4~19mm/6~19mm
Product Level Industrial Grade/hot Rolling, Food Grade/cold Rolling Scope Of Application Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc
High Light

310s Equal Angle Bar

,

Equal Angle Bar 9mm

,

Stainless Angle Bar 310s
Leave a Message
Product Description

Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm

Equal Unequal SS Angle Bar 201 304 304L 321 316 316L Sizes Exported To 50 Countries

Is steel angle stronger than aluminum?

Strength. Both steel angle and aluminum angle offer high-strength options for a variety of projects. That being said, you'll generally find that steel is a stronger option for heavier and larger structures.


2.Chemical composition and mechanical



Chemical composition
Material C Si Mn Cr Ni S P N
304 ≤0.08 ≤1.00 ≤2.00 ≤18.0-20.0 ≤8.0-10.5 ≤0.030 ≤0.035 ≤0.1



 Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list
Angle of the side thickness (mm)
A×Bmm 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.4 4
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42
60×60     4.58 5.42 6.24 7.03
63×63     5.03 5.95 6.84 7.71 8.6
70×70     5.42 6.42 7.39 8.34 9.31
75×75     5.82 6.89 7.95 8.97 10
80×80       7.37 8.5 9.61 10.7
90×90       8.33 9.65 11.9 12.2
100×100       9.28 10.8 12.2 13.6

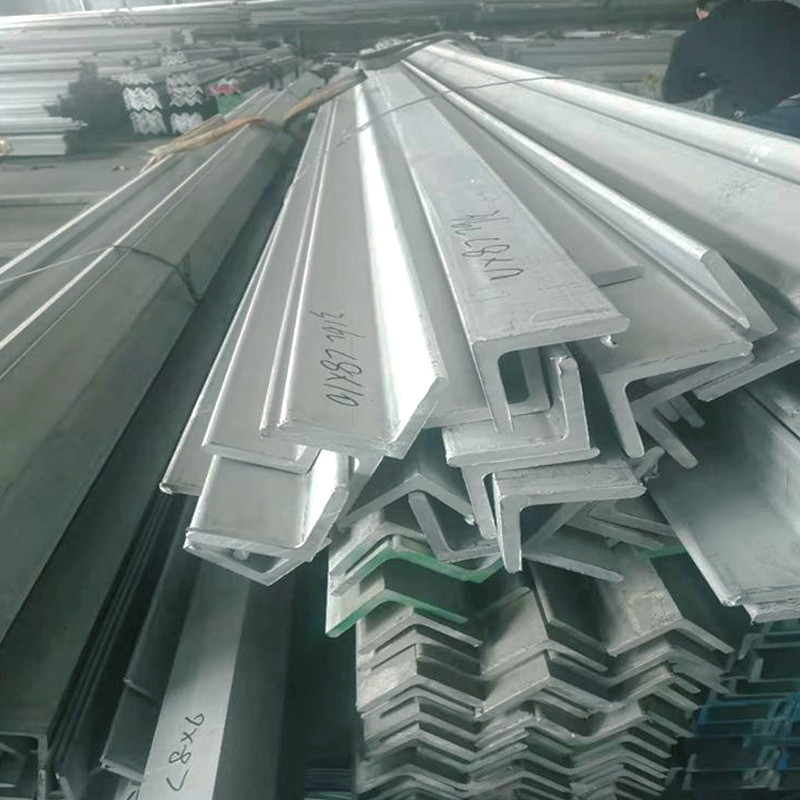

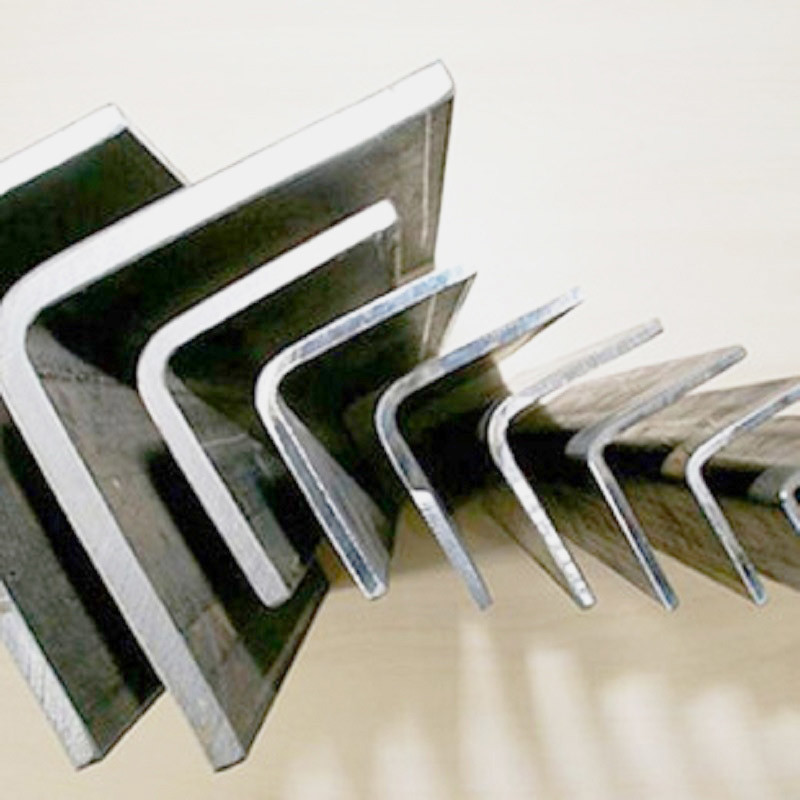

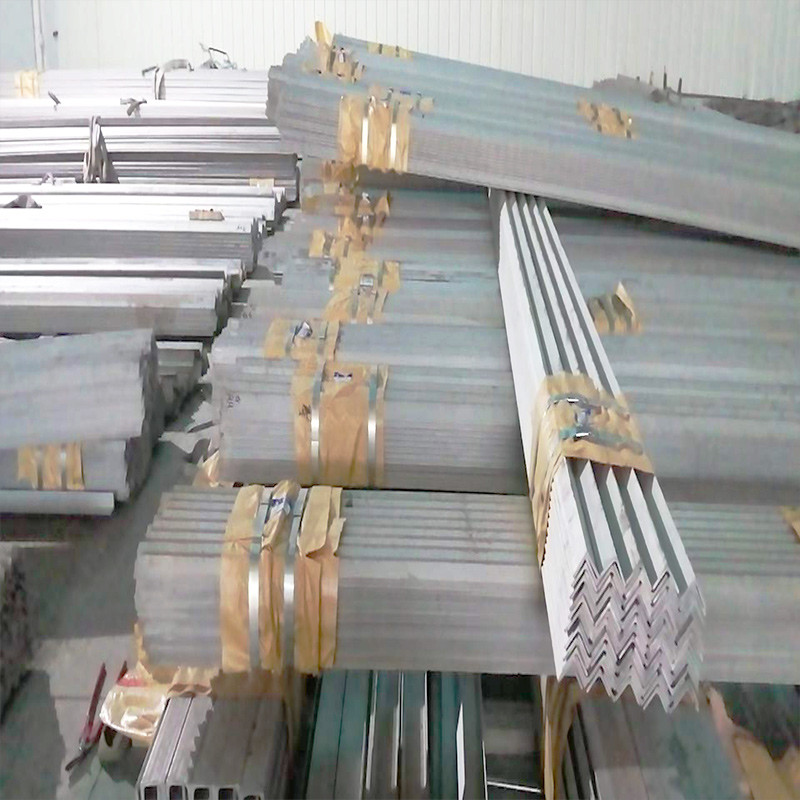

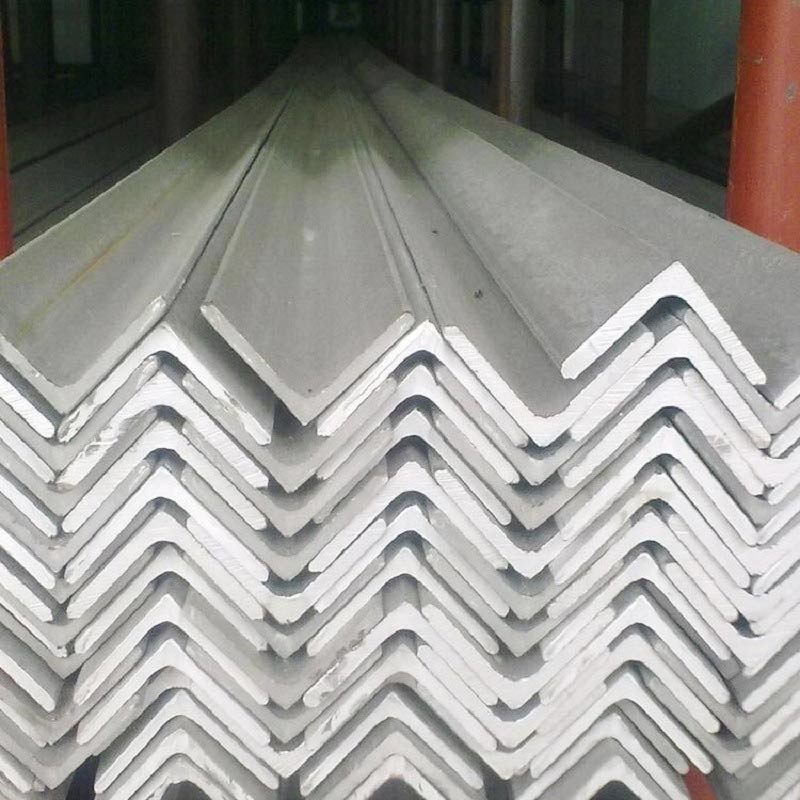

3.Product show

Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm 0Equal 409 310s Stainless Angle Bar Exported To 50 Countries 9mm 1
