Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm

  • Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm
  • Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm
  • Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm
  • Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm
Place of Origin China
Brand Name Chengjiu
Minimum Order Quantity 100kg. We also can accept sample order.
Price bargaining
Packaging Details According to the customers' requirement
Delivery Time Within 15-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel Angle Steel Material 201 304 309 310s 2205 2507 316L
Product Specification Can Be Customized On Demand Product Level Industrial Grade/hot Rolling, Food Grade/cold Rolling
Thickness 3~9mm/4~12mm/4~19mm/6~19mm Scope Of Application Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc
High Light

6 Meters Stainless Steel Angle Bar

,

Stainless Steel Angle Bar 3mm

,

3mm 16 Gauge Stainless Steel Angle
Leave a Message
Product Description



Pickled Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm

Quality Guarantee Pickled Stainless Steel Angle Steel Frame ASTM 201 304 316 Hot Rolled 6 Meters For Roofing

Also known as L-Bracket or Angle Iron, an Angle Bar is a 90° metal bracket used more commonly in roof trusses. Angle Bars can also provide reliable stability and resistance to corrosion on support beams and structural platforms.



2.Chemical composition and mechanical



Chemical composition
Material C Si Mn Cr Ni S P N
304 ≤0.08 ≤1.00 ≤2.00 ≤18.0-20.0 ≤8.0-10.5 ≤0.030 ≤0.035 ≤0.1



 Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list
Angle of the side thickness (mm)
A×Bmm 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.4 4
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42
60×60     4.58 5.42 6.24 7.03
63×63     5.03 5.95 6.84 7.71 8.6
70×70     5.42 6.42 7.39 8.34 9.31
75×75     5.82 6.89 7.95 8.97 10
80×80       7.37 8.5 9.61 10.7
90×90       8.33 9.65 11.9 12.2
100×100       9.28 10.8 12.2 13.6



3.Product show

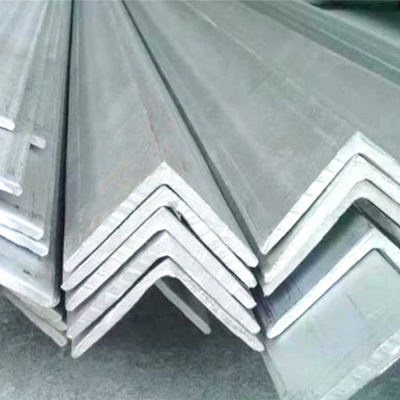

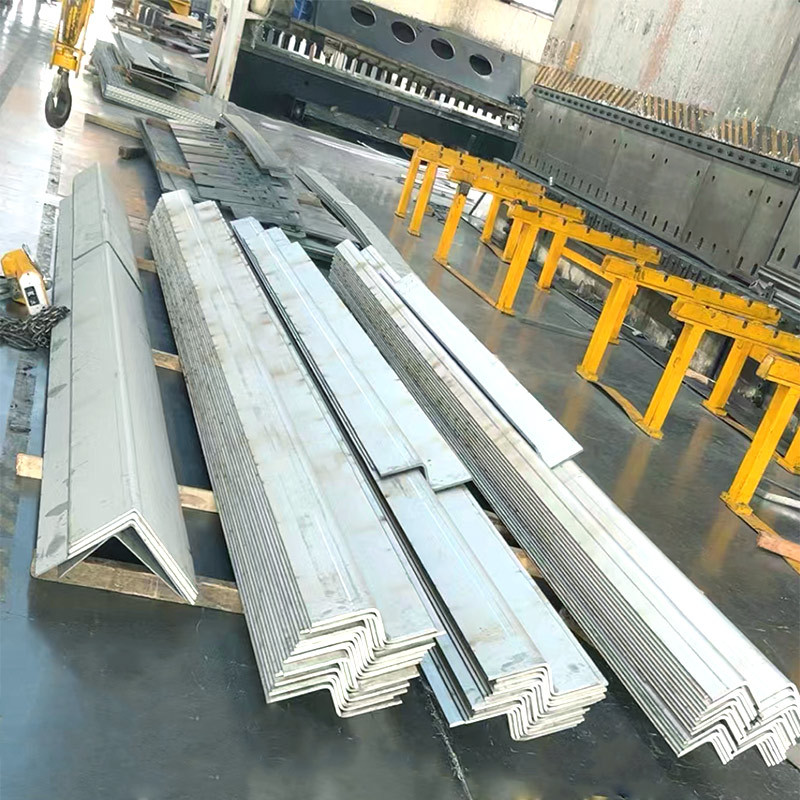

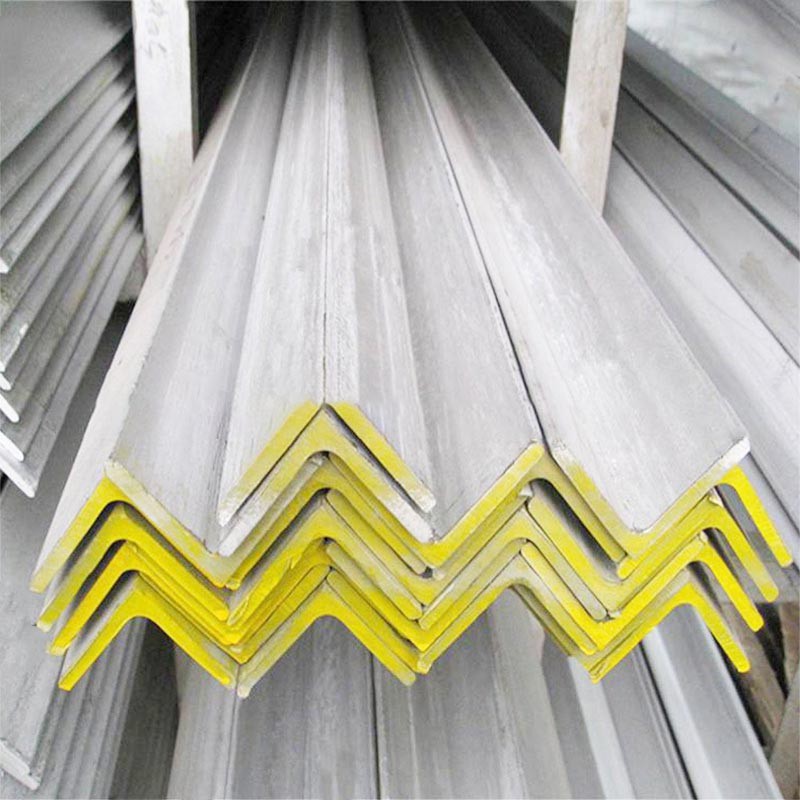

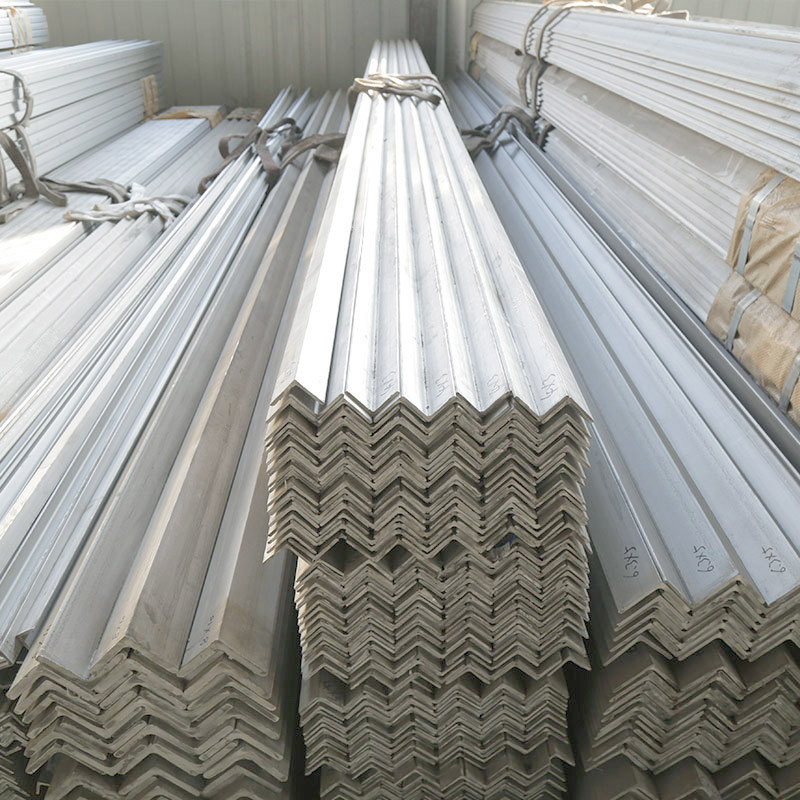

Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm 0



Pickled 16 Gauge Stainless Steel Angle Bar Frame ASTM 201 6 Meters 3mm 1
