19mm Stainless Steel Angle Bar Dimensions 4x4 2 Inch Industrial Grade
| Place of Origin | China |
|---|---|
| Brand Name | Chengjiu |
| Minimum Order Quantity | 100kg. We also can accept sample order. |
| Price | bargaining |
| Packaging Details | According to the customers' requirement |
| Delivery Time | Within 15-30 workdays after receiving deposit or L/C |
| Payment Terms | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability | 5000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Stainless Steel Angle Steel 309 | Material | 201 304 316L 309 310s 2205 2507 |
|---|---|---|---|
| Thickness | 3~9mm/4~12mm/4~19mm/6~19mm | Product Specification | Can Be Customized On Demand |
| Product Level | Industrial Grade/hot Rolling, Food Grade/cold Rolling | Scope Of Application | Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc |
| Highlight | 19mm Stainless Steel Angle Bar,4x4 Stainless Steel Angle Bar,Stainless Steel Angle 19mm |
||
Product Description
19mm Stainless Steel Angle Bar Dimensions 4x4 2 Inch Industrial Grade
Stainless steel is armed with built-in corrosion resistance but it can and will rust in certain conditions—although not as quickly or severely as conventional steels. Stainless steels corrode when exposed to damaging chemicals, saline, grease, moisture, or heat for prolonged periods of time.
2.Chemical composition and mechanical
| Chemical composition | ||||||||
| Material | C | Si | Mn | Cr | Ni | S | P | N |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤18.0-20.0 | ≤8.0-10.5 | ≤0.030 | ≤0.035 | ≤0.1 |
Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200
Stainless steel Angle steel specification list
| Angle of the side | thickness (mm) | ||||||
| A×Bmm | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20×20 | 0.894 | 1.13 | 1.38 | ||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | |||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | |||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | |||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | |||
| 45×45 | 2.12 | 2.76 | 3.4 | 4 | |||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | |||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.6 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10 | ||
| 80×80 | 7.37 | 8.5 | 9.61 | 10.7 | |||
| 90×90 | 8.33 | 9.65 | 11.9 | 12.2 | |||
| 100×100 | 9.28 | 10.8 | 12.2 | 13.6 | |||

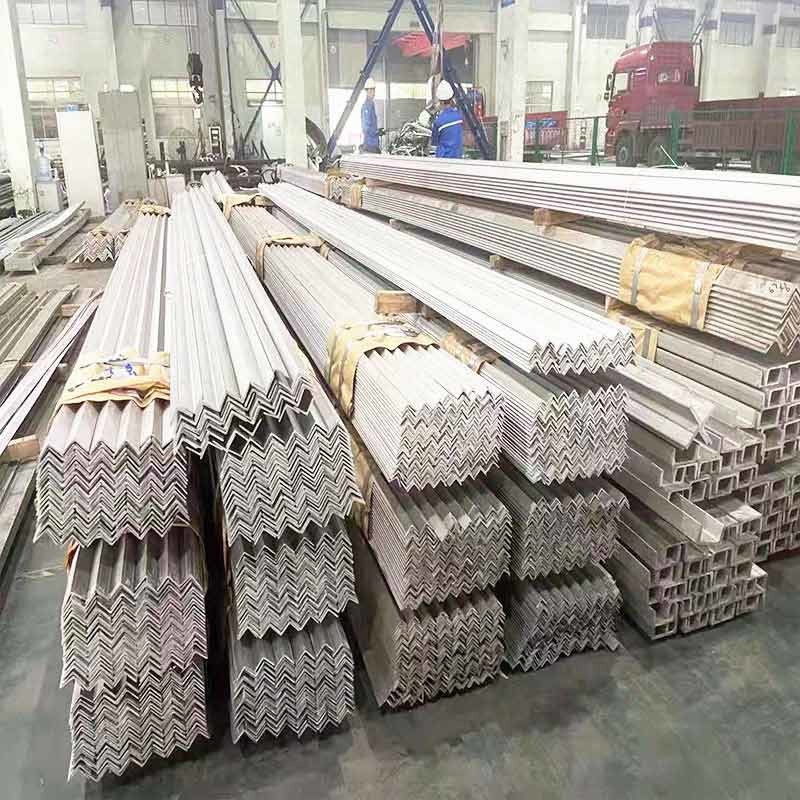

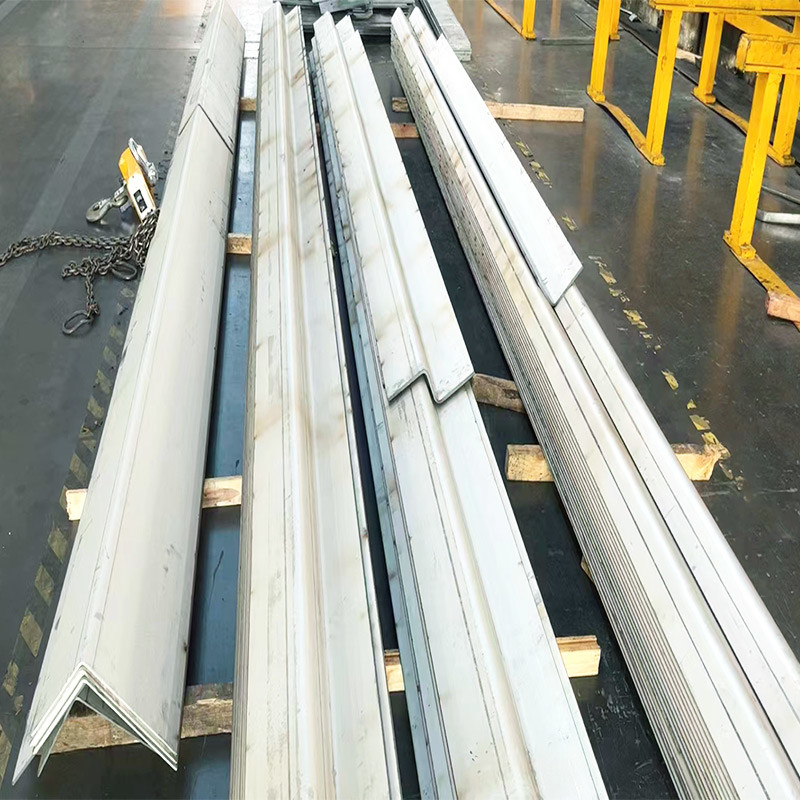

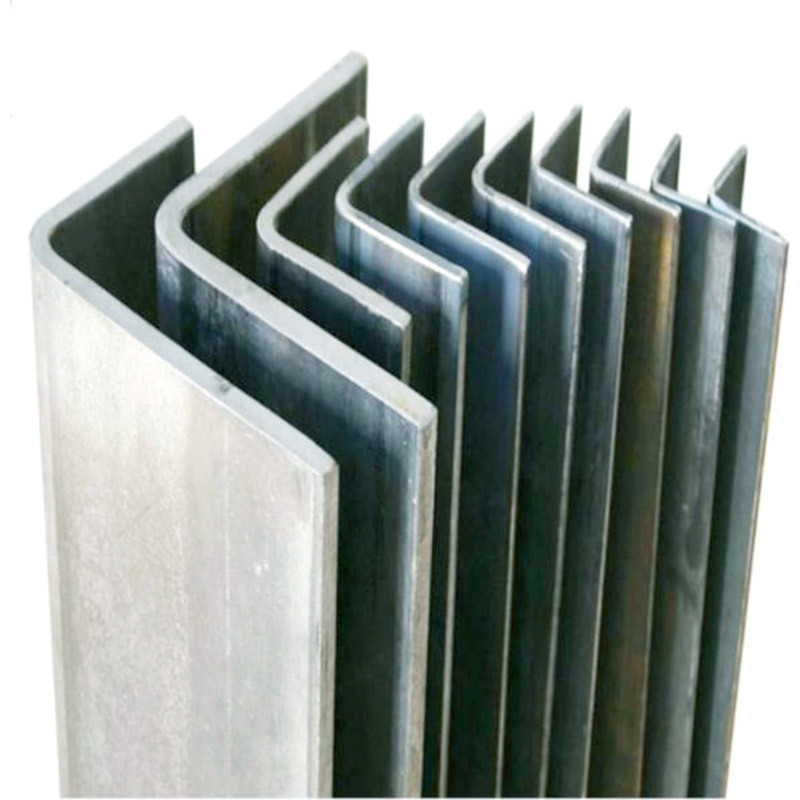

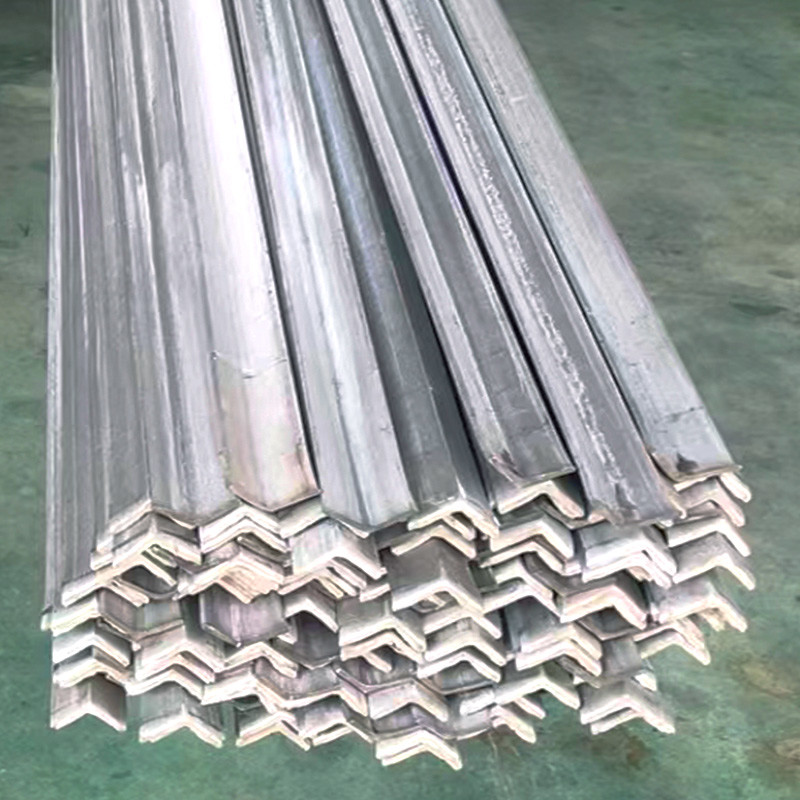

3.Product show
