7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar

  • 7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar
  • 7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar
  • 7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar
  • 7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar
  • 7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar
Place of Origin China
Brand Name Chengjiu
Minimum Order Quantity 100kg. We also can accept sample order.
Price bargaining
Packaging Details According to the customers' requirement
Delivery Time Within 15-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 4~19mm Stainless Steel Angle Bar Material 201 304 316L 309 310s 2205 2507
Product Specification Can Be Customized On Demand Thickness 4~12mm/4~19mm/6~19mm/3~9mm
Product Level Industrial Grade/hot Rolling, Food Grade/cold Rolling Scope Of Application Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc
High Light

7mm Metal Angle Bar

,

Mild Steel Angle Bar 7mm

,

904L Mild Steel Angle Bar
Leave a Message
Product Description

7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar

Is stainless steel better than aluminum?

With good corrosion resistance properties, aluminium does not rust. But stainless steel takes the advantage here as it has chromium added, giving it a protective film and excellent corrosion resistance. Stainless steel is also non-porous, giving it an extra level of corrosion resistance.



2.Chemical composition and mechanical



Chemical composition
Material C Si Mn Cr Ni S P N
304 ≤0.08 ≤1.00 ≤2.00 ≤18.0-20.0 ≤8.0-10.5 ≤0.030 ≤0.035 ≤0.1



 Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list
Angle of the side thickness (mm)
A×Bmm 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.4 4
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42
60×60     4.58 5.42 6.24 7.03
63×63     5.03 5.95 6.84 7.71 8.6
70×70     5.42 6.42 7.39 8.34 9.31
75×75     5.82 6.89 7.95 8.97 10
80×80       7.37 8.5 9.61 10.7
90×90       8.33 9.65 11.9 12.2
100×100       9.28 10.8 12.2 13.6

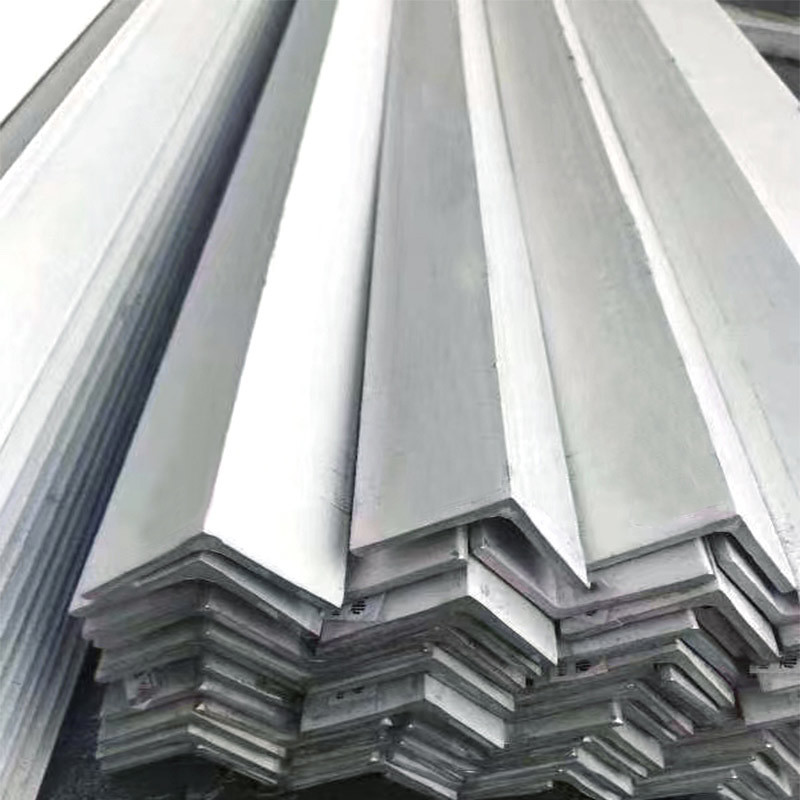

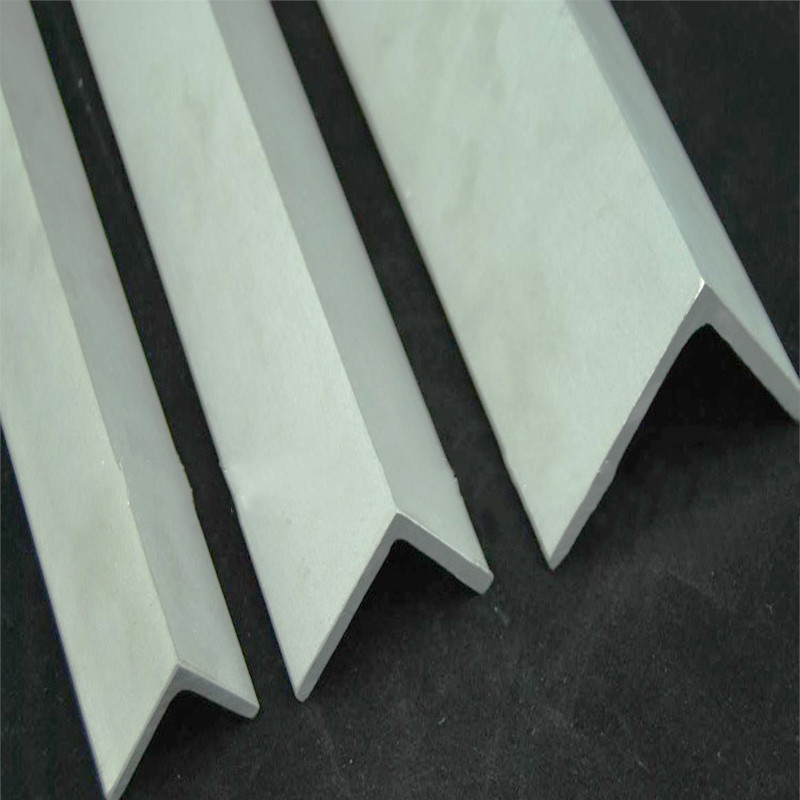

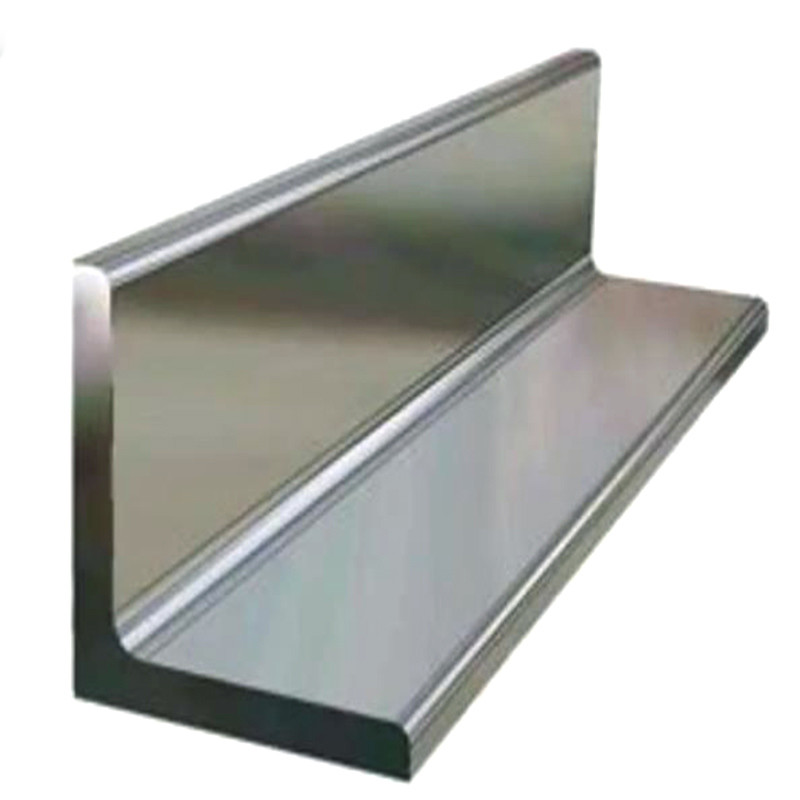

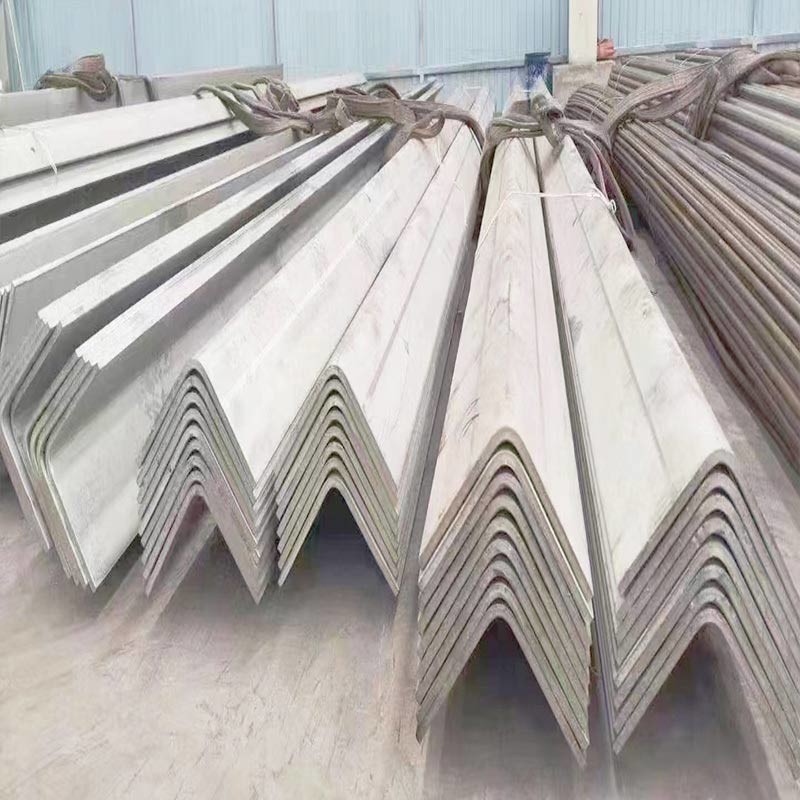

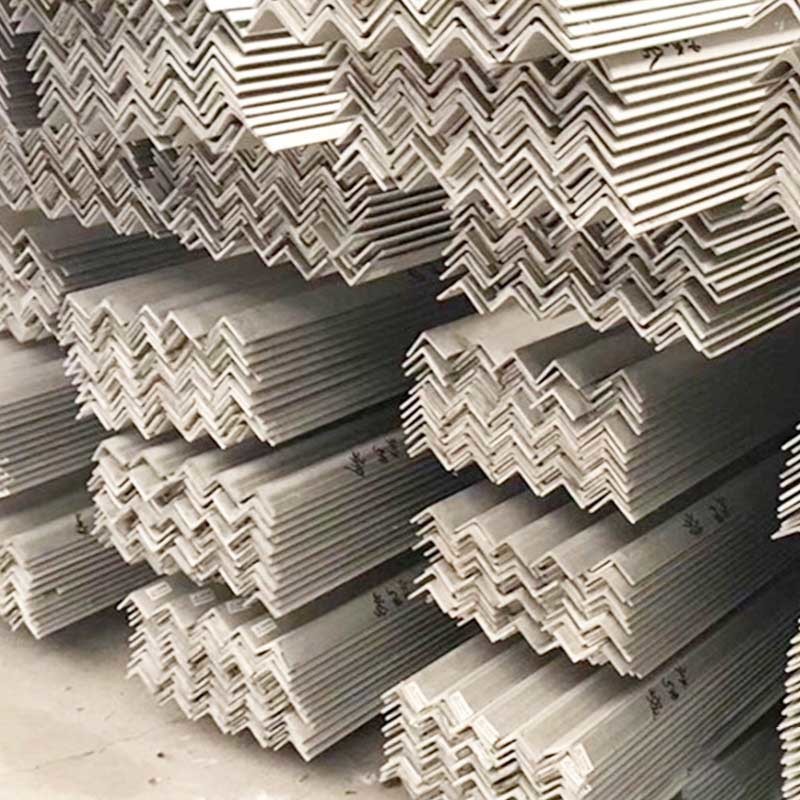

3.Product show

7mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar 07mm Metal Angle Bar Engineering Structures 904L Mild Steel Angle Bar 1
