4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish

  • 4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish
  • 4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish
  • 4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish
  • 4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish
Place of Origin China
Brand Name Chengjiu
Minimum Order Quantity 100kg. We also can accept sample order.
Price bargaining
Packaging Details According to the customers' requirement
Delivery Time Within 15-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 2205 Stainless Steel Angle Bar Product Specification Can Be Customized On Demand
Material 2507 201 304 316L 309 310s 2205 Thickness 3~9mm/4~12mm/4~19mm/6~19mm
Product Level Industrial Grade/hot Rolling, Food Grade/cold Rolling Scope Of Application Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc
High Light

4mm Stainless Steel Angle Bar

,

Stainless Steel Angle Bar SS400

,

SS400 Stainless Steel Angle
Leave a Message
Product Description

4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish



Which is stronger round or square?

Thanks to the even weight distribution, circles are much stronger than squares. Each corner of a square has a weak point in the middle. A steel pipe can support far more weight than a steel square tube.



2.Chemical composition and mechanical



Chemical composition
Material C Si Mn Cr Ni S P N
304 ≤0.08 ≤1.00 ≤2.00 ≤18.0-20.0 ≤8.0-10.5 ≤0.030 ≤0.035 ≤0.1



 Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list
Angle of the side thickness (mm)
A×Bmm 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.4 4
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42
60×60     4.58 5.42 6.24 7.03
63×63     5.03 5.95 6.84 7.71 8.6
70×70     5.42 6.42 7.39 8.34 9.31
75×75     5.82 6.89 7.95 8.97 10
80×80       7.37 8.5 9.61 10.7
90×90       8.33 9.65 11.9 12.2
100×100       9.28 10.8 12.2 13.6

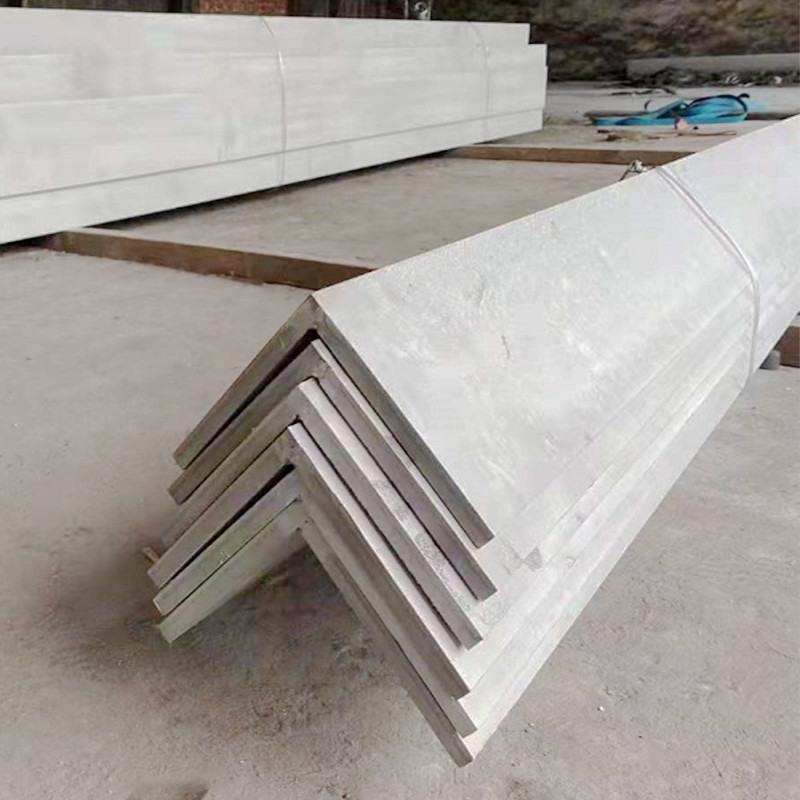

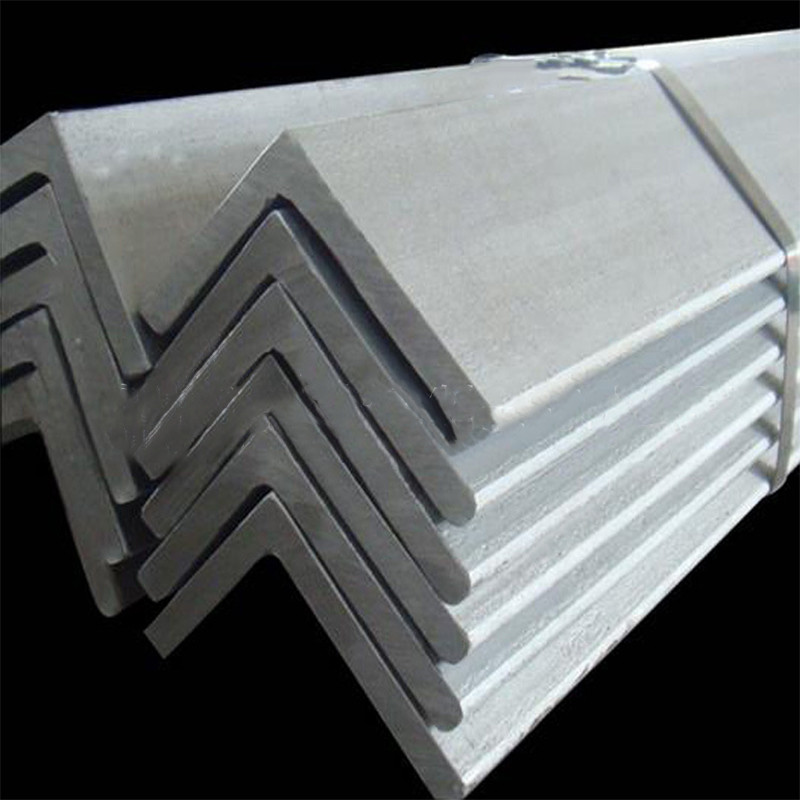

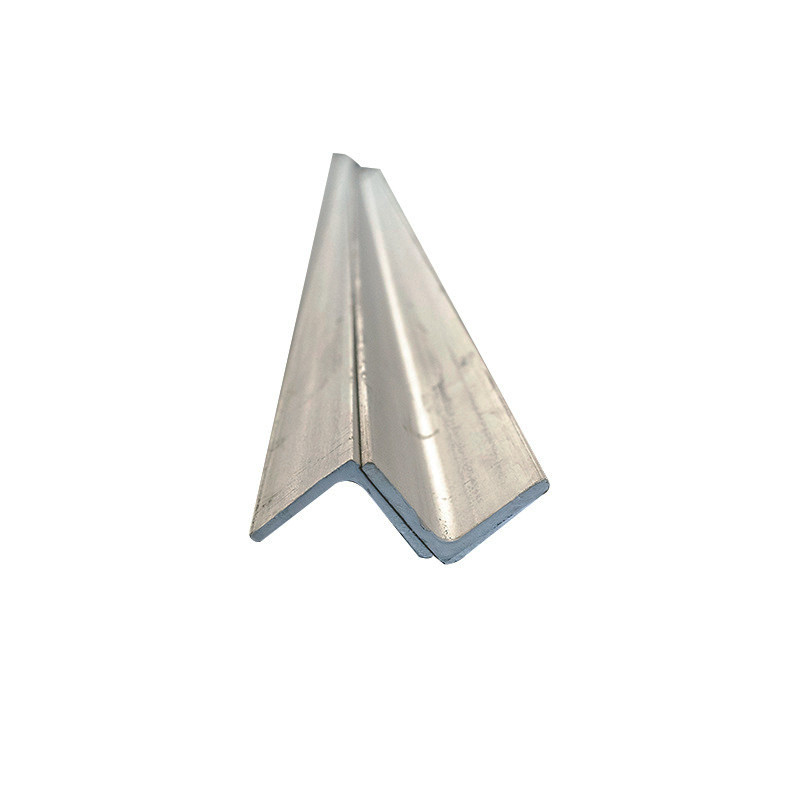

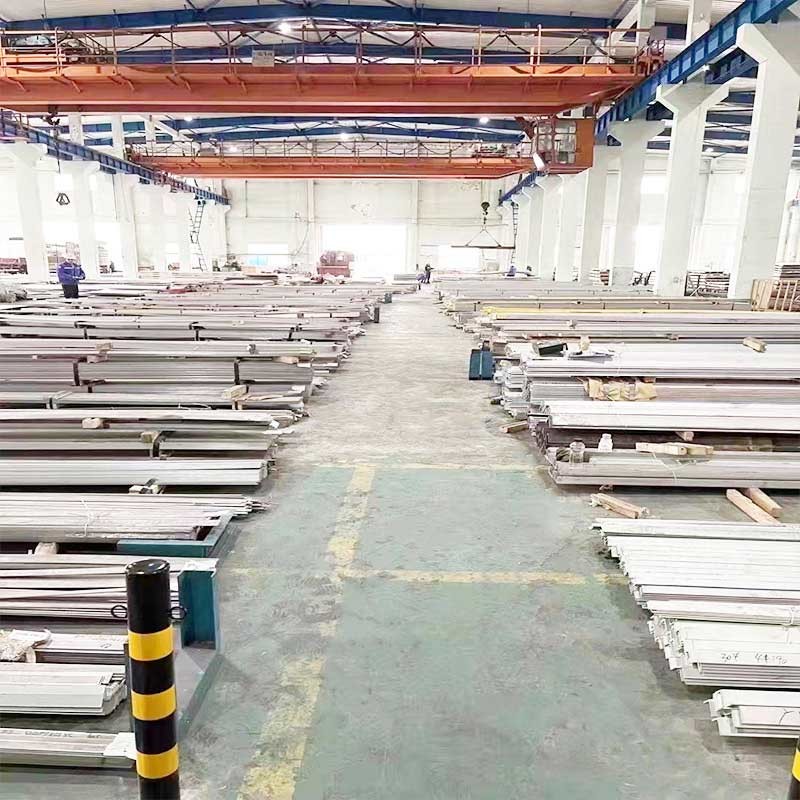

3.Product show

4mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish 04mm Stainless Steel Angle Bar SS400 SS540 Series No.1 Finish 1
