16mm Polished Stainless Angle 2507

  • 16mm Polished Stainless Angle 2507
  • 16mm Polished Stainless Angle 2507
  • 16mm Polished Stainless Angle 2507
  • 16mm Polished Stainless Angle 2507
  • 16mm Polished Stainless Angle 2507
  • 16mm Polished Stainless Angle 2507
Place of Origin China
Brand Name Chengjiu
Minimum Order Quantity 100kg. We also can accept sample order.
Price bargaining
Packaging Details According to the customers' requirement
Delivery Time Within 15-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel Angle Steel Material 201 304 316L 309 310s 2205 2507
Product Specification Can Be Customized On Demand Thickness 3~9mm/4~12mm/4~19mm/6~19mm
Product Level Industrial Grade/hot Rolling, Food Grade/cold Rolling Scope Of Application Various Building Structures And Engineering Structures, Such As Beams, Bridges, Transmission Towers, Lifting And Transportation Machinery, Ships, Industrial Furnaces, Reaction Towers, Container Racks And Warehouse Shelves, Etc
Highlight

16mm Polished Stainless Angle

,

Stainless Steel Angle 16mm

,

Polished Stainless Angle 2507
Leave a Message
Product Description

304 Stainless Steel Angle Steel Equilateral Angle Steel

Best Quality Stainless Steel Polished Angle Straight Bar Dimensions 2 Inch

   Stainless steel Angle steel can be composed of different stress components according to the different needs of the structure, but also can be used as a connection between components. Widely used in a variety of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.



2.Chemical composition and mechanical



Chemical composition
Material C Si Mn Cr Ni S P N
304 ≤0.08 ≤1.00 ≤2.00 ≤18.0-20.0 ≤8.0-10.5 ≤0.030 ≤0.035 ≤0.1



 Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list
Angle of the side thickness (mm)
A×Bmm 4 5 6 7 8 9 10
20×20 0.894 1.13 1.38
25×25 1.13 1.45 1.77 2.06
30×30 1.37 1.77 2.17 2.53
35×35 1.61 2.09 2.57 3.01
40×40 1.85 2.41 2.97 3.49
45×45 2.12 2.76 3.4 4
50×50 2.36 3.07 3.79 4.46 5.13 5.76 6.42
60×60     4.58 5.42 6.24 7.03
63×63     5.03 5.95 6.84 7.71 8.6
70×70     5.42 6.42 7.39 8.34 9.31
75×75     5.82 6.89 7.95 8.97 10
80×80       7.37 8.5 9.61 10.7
90×90       8.33 9.65 11.9 12.2
100×100       9.28 10.8 12.2 13.6

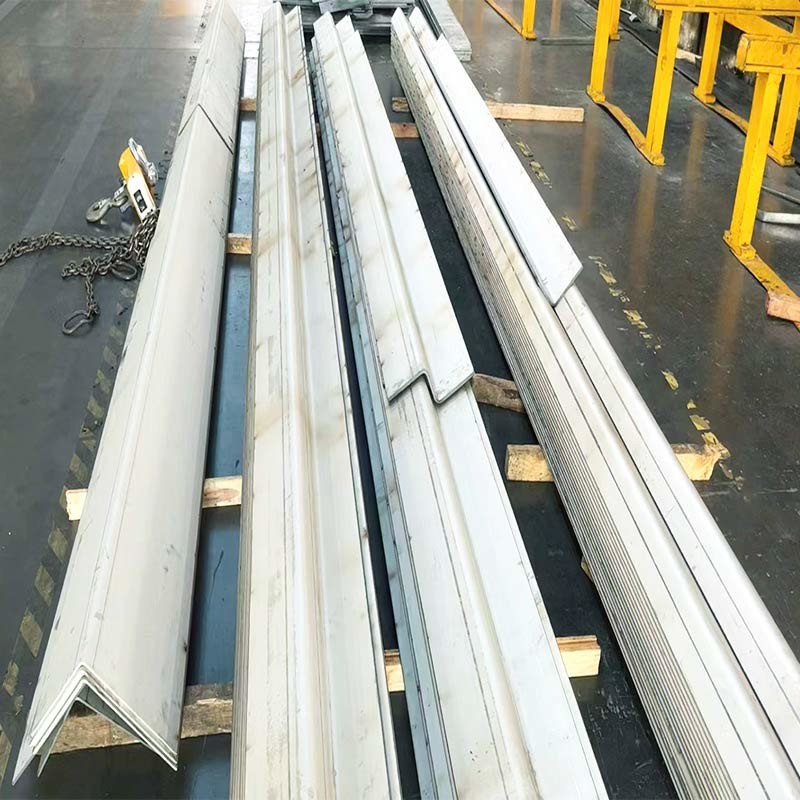

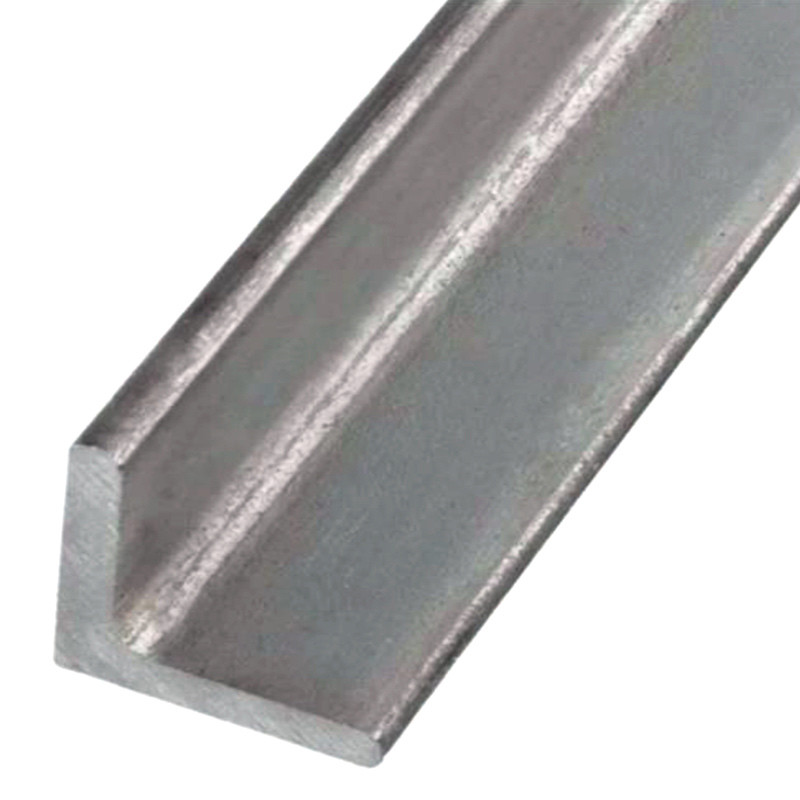

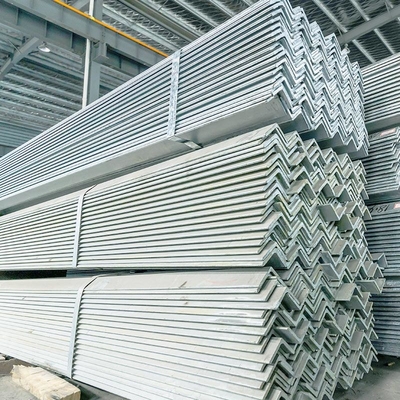

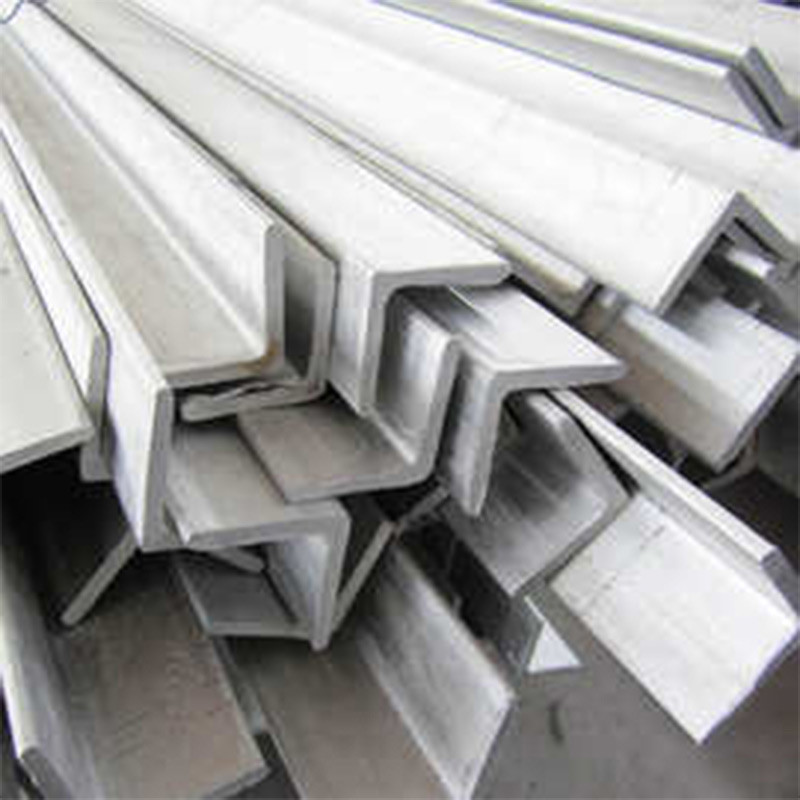

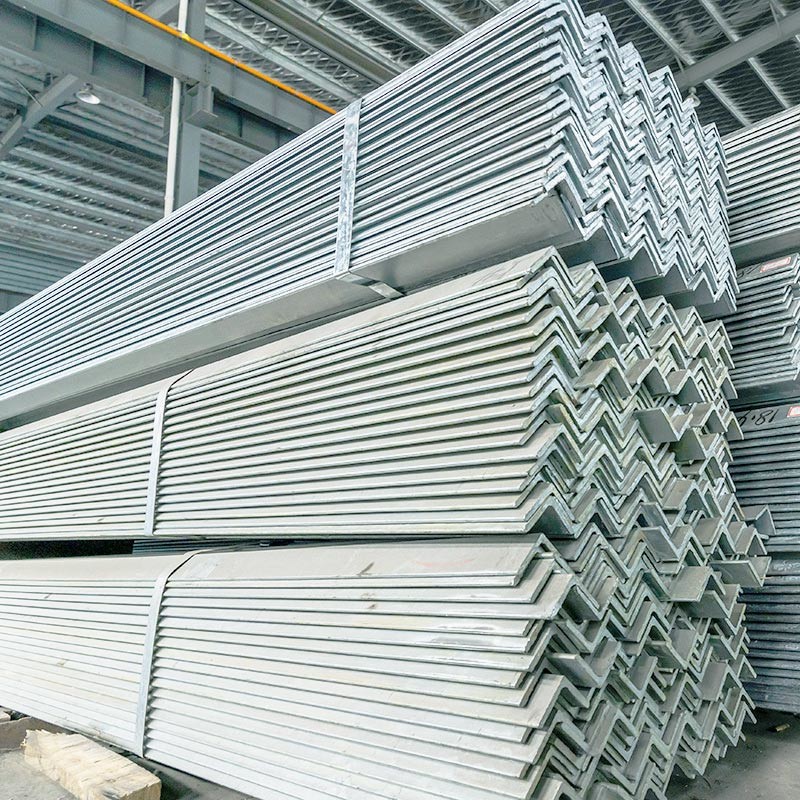

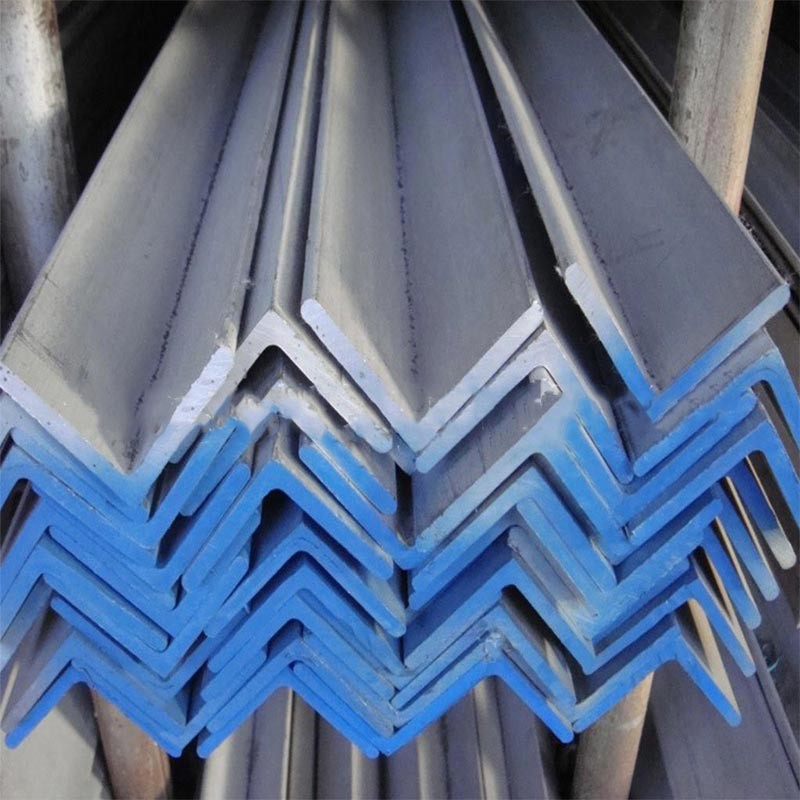

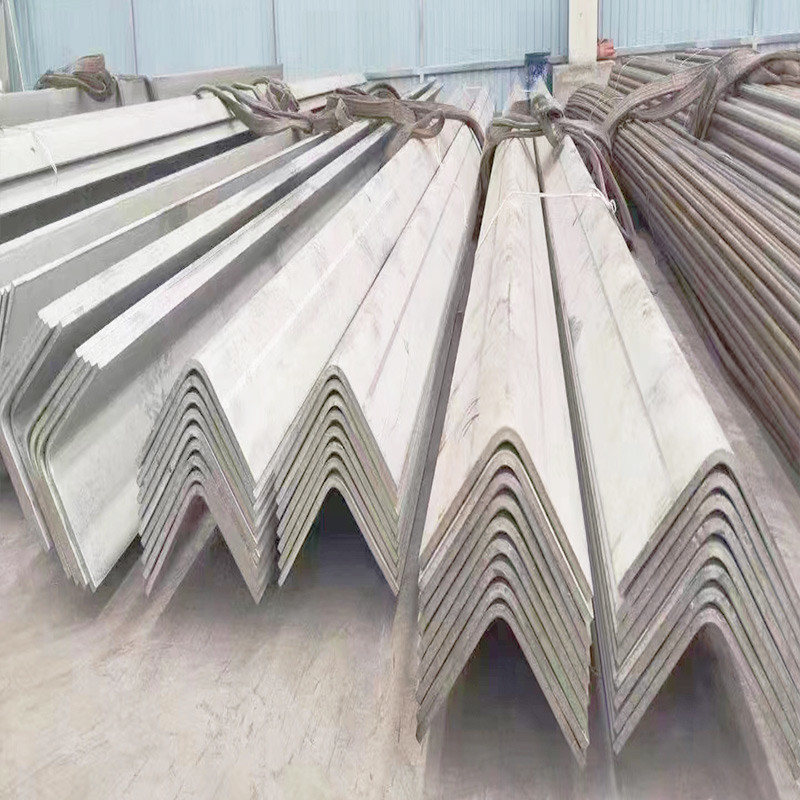

3.Product show

16mm Polished Stainless Angle 2507 016mm Polished Stainless Angle 2507 1
