DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel

  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
  • DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
Place of Origin China
Brand Name CJ
Minimum Order Quantity 100kg. We also can accept sample order.
Packaging Details Industry standard packaging or according to client's requirement
Delivery Time Fast delievery in7-10 days,up to order quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10,000,000 tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name 2205 Stainless Steel Strip Material 2205
Application It Is Widely Used In High Temperature Applications, Medical Devices, Building Materials, Chemistry, Food Industry, Agriculture, Ship Components. It Also Applies To Food, Beverage Packaging, Kitchen Supplies, Trains, Aircraft, Conveyor Belts, Vehicles, Bolt MOQ 100kg. We Can Accept Sample Order
Shipment Time Within 15-20 Workdays After Receiving Deposit Or L/C Thickness Tolerance ±0.01mm
High Light

2507 Stainless Steel Strip

,

Stainless Spring Steel Strip 19mm

,

Stainless Steel Strip 19mm
Leave a Message
Product Description

DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel



You'll find strip steel used in appliances like refrigerators, washers, and dryers. The unique properties of strip steel have also made it a popular material for building and construction materials.


Product Name stainless steel strip

Material Surface Treatment Thickness width
201 BA 0.15-0.8mm 10-800mm
202 BA 0.15-0.8mm 10-800mm
304 BA 0.025-0.8mm 10-800mm
304 CSP(1/2H,3/4H,H) 0.08-1.0mm 10-690mm
301 CSP(1/2H,3/4H,H,EH) 0.08-1.0mm 10-690mm
309S 2B 0.08-2.0 10-690mm
310S 2B 0.08-2.0 10-690mm
430 BA 0.15-0.8mm 10-800mm
430 1D 0.15-0.8mm 10-690mm
430 2D 0.15-0.8mm 10-690mm
430 H 0.08-1.0mm 10-690mm
409 HD 0.15-0.8mm 10-690mm



2.Chemical composition and mechanical

200 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr N Cu Y.S T.S. ELOG. HRB
  % % % % % % % % % N/mm2 N/mm2 %
201(1% Nickel) ≤ 0.15 ≤ 1.00 8~11 ≤ 0.060 ≤ 0.030 0.9~1.5 15~17 ≤ 0.25 1.5~2 ≥ 310 ≥ 655 ≥ 35 ≤ 105
202(4% Nickel) ≤ 0.15 ≤ 1.00 6~9 ≤ 0.060 ≤ 0.030 3.5~5 15~17 ≤ 0.25 1.5~2 ≥ 260 ≥ 620 ≥ 40 ≤ 100



300 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr Mo Y.S T.S. ELOG. HRB
  % % % % % % % % N/mm2 N/mm2 %
304 ≤ 0.08 ≤ 0.75 ≤ 2 ≤ 0.045 ≤ 0.03 8~10 18~20   ≥ 205 ≥ 520 ≥ 40 ≤ 90
301 ≤ 0.15 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 6~8 16~18   ≥ 205 ≥ 515 ≥ 40 ≤ 95
316 ≤ 0.08 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 10~14 16~18 2~3 ≥ 205 ≥ 515 ≥ 40 ≤ 90
316L ≤ 0.03 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 12~15 16~18 2~3 ≥ 170 ≥ 480 ≥ 40 ≤ 95



400 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr N Cu Y.S T.S. ELOG. HRB
  % % % % % % % % % N/mm2 N/mm2 %
430 ≤ 0.12 ≤ 1.00 ≤ 1 ≤ 0.040 ≤ 0.030   16~18     ≥ 450 ≥ 205 ≥ 22 ≤ 88

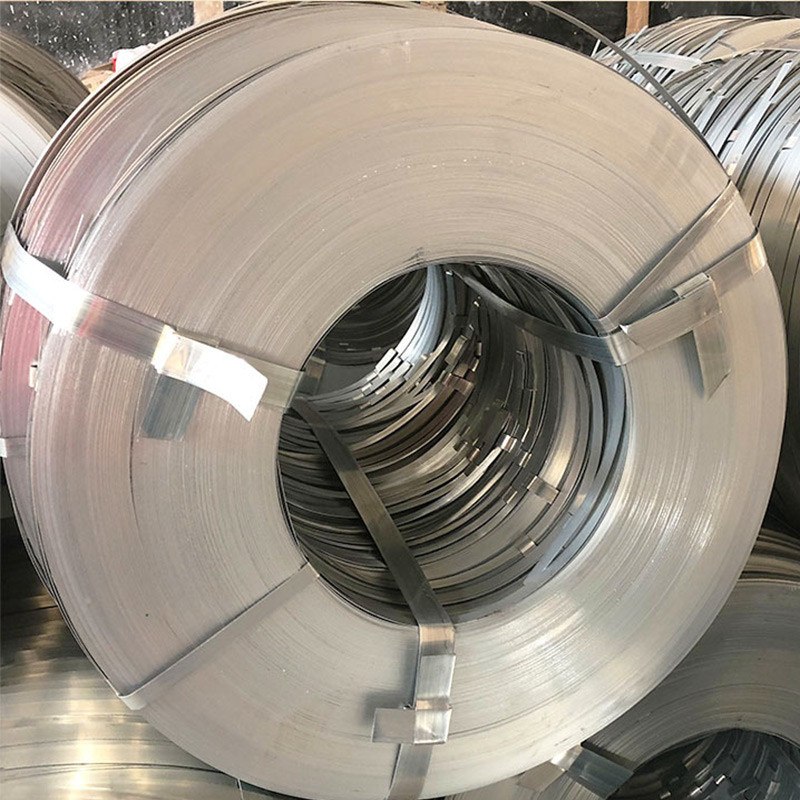

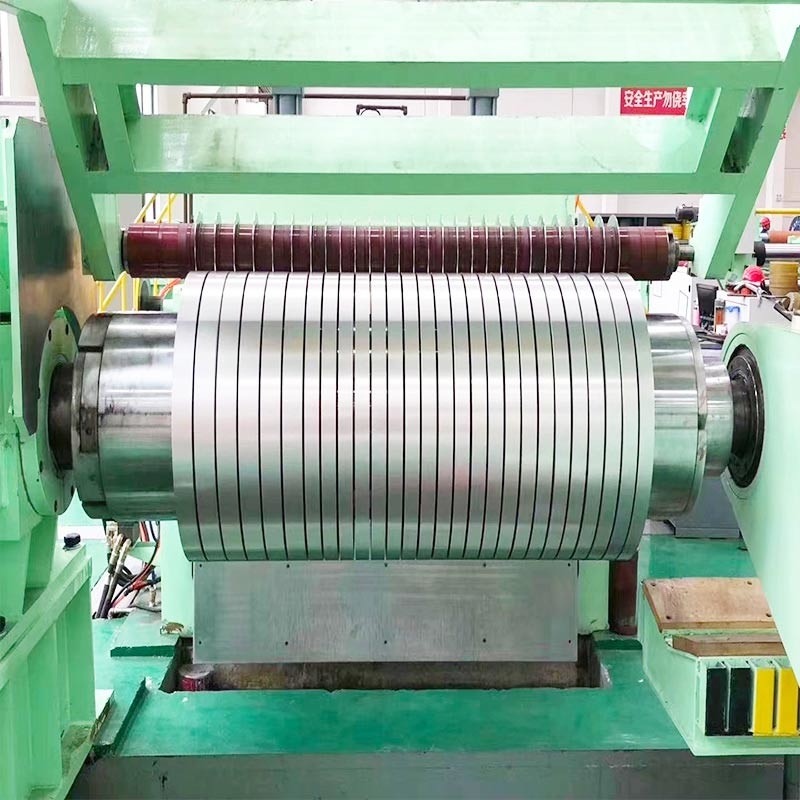

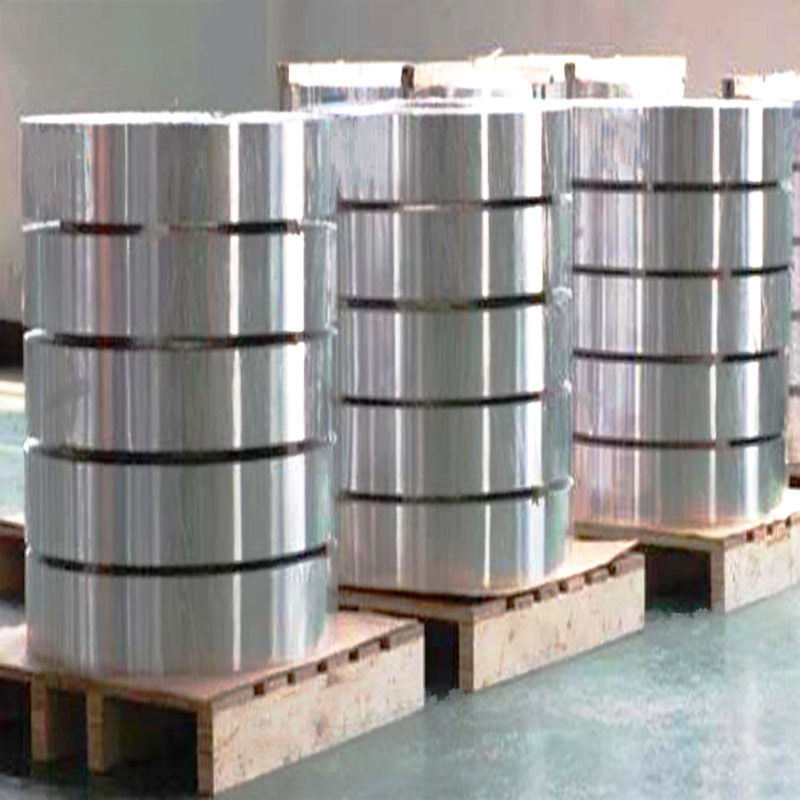

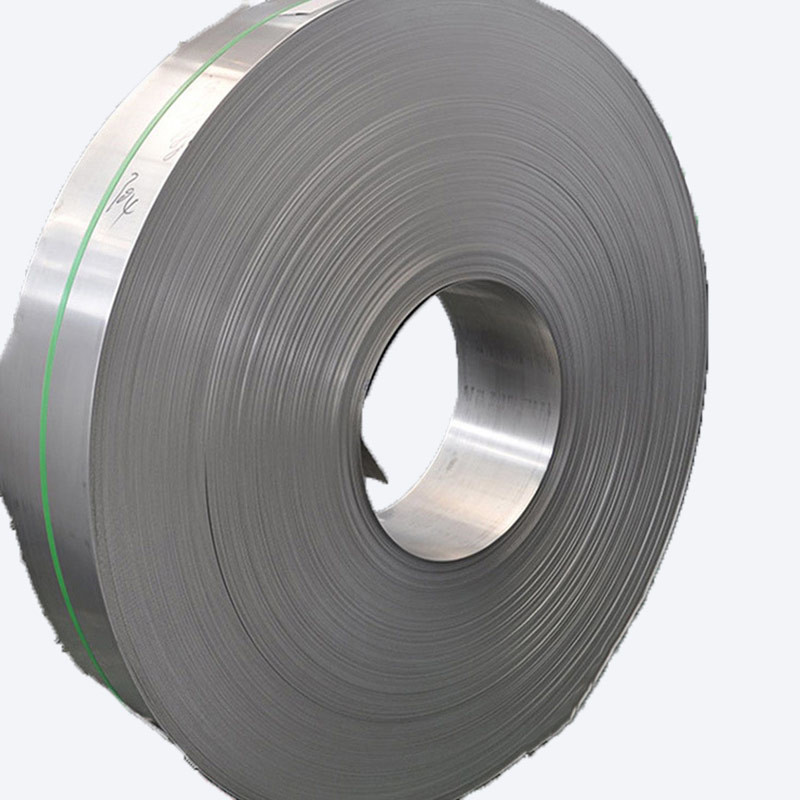

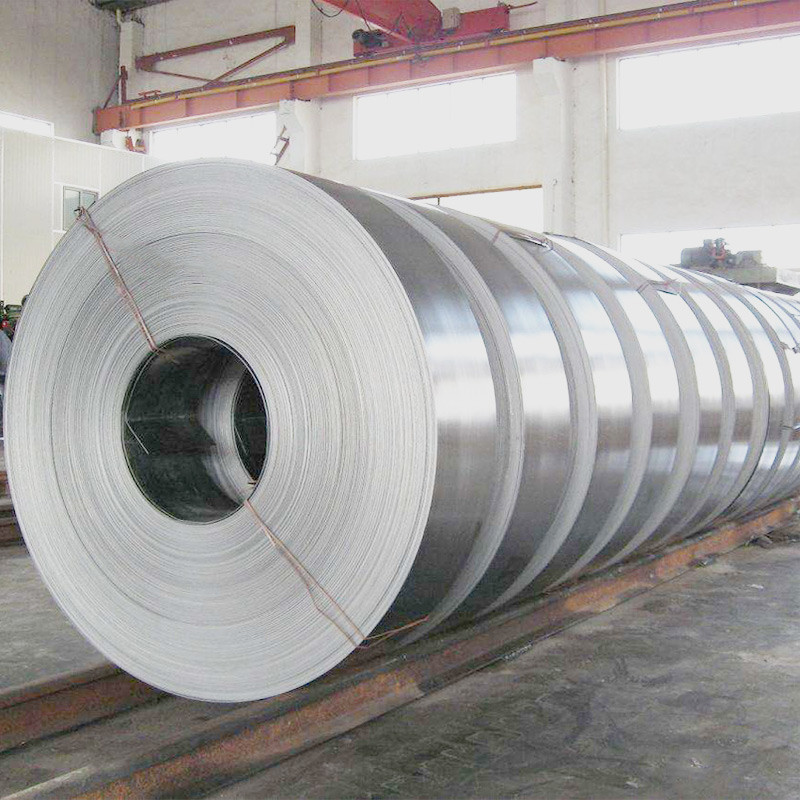

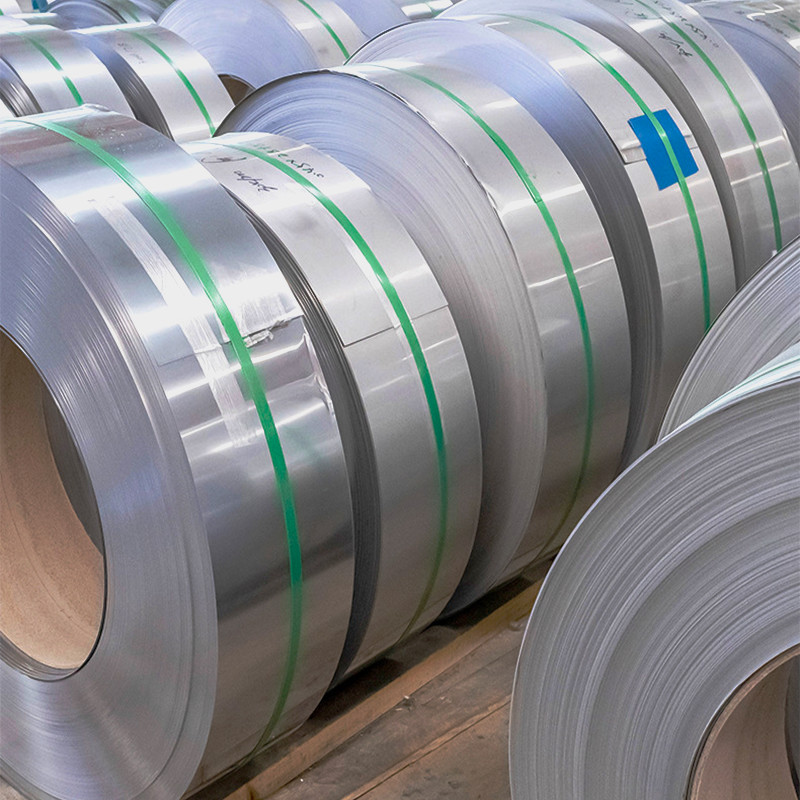

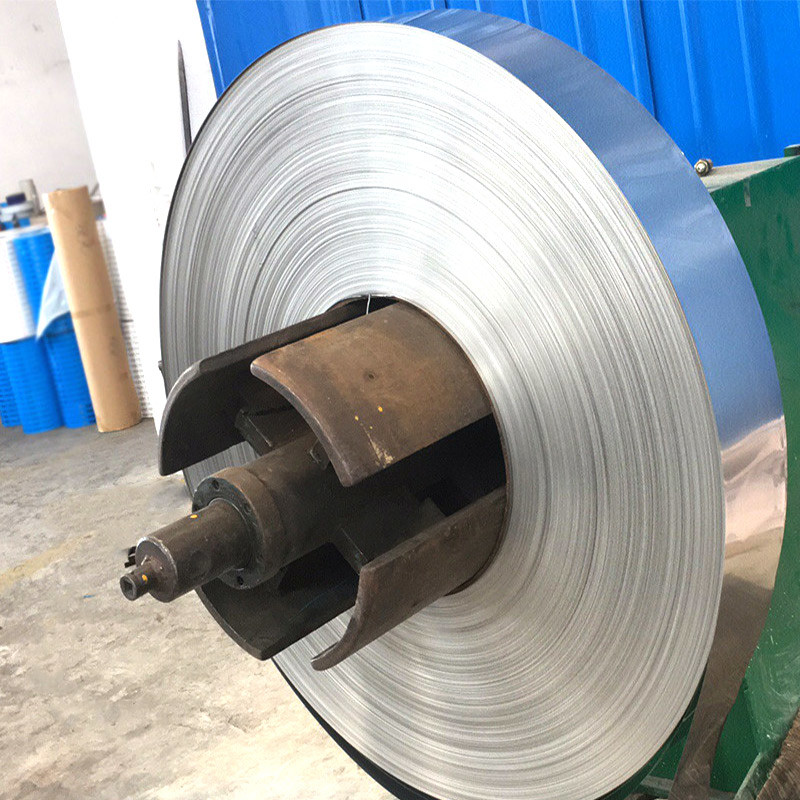

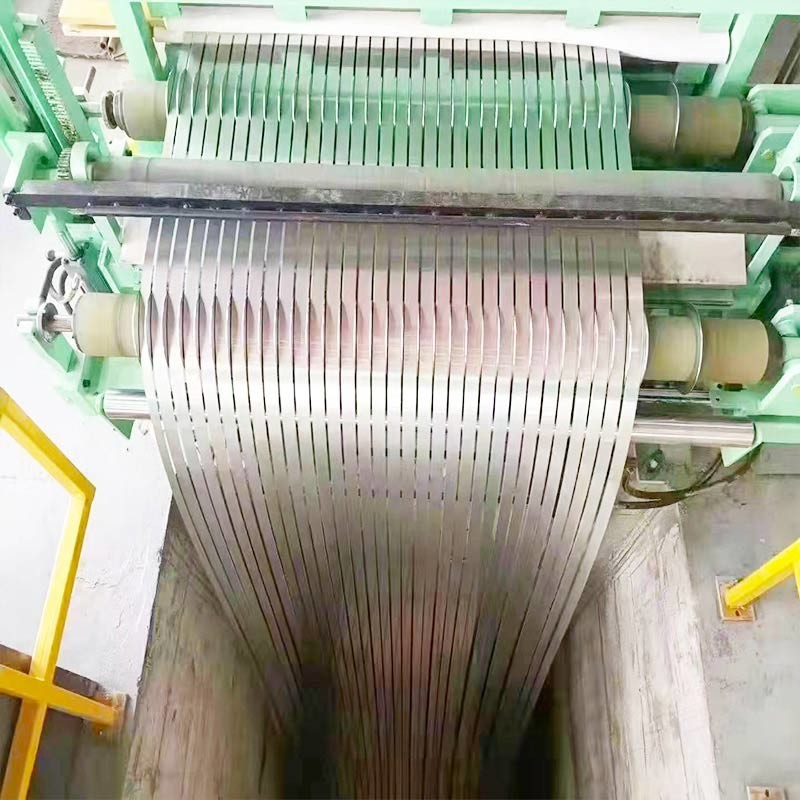

3.Product Show



DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel 0DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel 1

DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel 2
