ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled

  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
  • ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled
Place of Origin China
Brand Name CJ
Minimum Order Quantity 100kg. We also can accept sample order.
Packaging Details Industry standard packaging or according to client's requirement
Delivery Time Fast delievery in7-10 days,up to order quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10,000,000 tons/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel Belt 206 Length As Required
Surface Treatment 2B Or According To Customer Requirement Thickness 0.025mm-2.5mm Or As Required
Technique Cold Rolled Thickness Tolerance ±0.01mm
High Light

301 Stainless Steel Strip 2.5mm

,

ASTM 301 Stainless Steel Strip

,

Stainless Steel Strip 2.5mm
Leave a Message
Product Description

ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled

How steel strips are made?

Strip steels are manufactured by hot rolling to thicknesses not less than 2 mm, and then finally cold rolled to the required final thickness. Since cold forming (e.g. by deep drawing, stretch forming or bending) is a widely used application for low-carbon strip steels, a final recrystallization anneal is applied.



ASTM 201 304 Stainless Steel Strip 0.025-2.5mm Thickness
Product Name stainless steel strip

Material Surface Treatment Thickness width
201 BA 0.15-0.8mm 10-800mm
202 BA 0.15-0.8mm 10-800mm
304 BA 0.025-0.8mm 10-800mm
304 CSP(1/2H,3/4H,H) 0.08-1.0mm 10-690mm
301 CSP(1/2H,3/4H,H,EH) 0.08-1.0mm 10-690mm
309S 2B 0.08-2.0 10-690mm
310S 2B 0.08-2.0 10-690mm
430 BA 0.15-0.8mm 10-800mm
430 1D 0.15-0.8mm 10-690mm
430 2D 0.15-0.8mm 10-690mm
430 H 0.08-1.0mm 10-690mm
409 HD 0.15-0.8mm 10-690mm



2.Chemical composition and mechanical

200 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr N Cu Y.S T.S. ELOG. HRB
  % % % % % % % % % N/mm2 N/mm2 %
201(1% Nickel) ≤ 0.15 ≤ 1.00 8~11 ≤ 0.060 ≤ 0.030 0.9~1.5 15~17 ≤ 0.25 1.5~2 ≥ 310 ≥ 655 ≥ 35 ≤ 105
202(4% Nickel) ≤ 0.15 ≤ 1.00 6~9 ≤ 0.060 ≤ 0.030 3.5~5 15~17 ≤ 0.25 1.5~2 ≥ 260 ≥ 620 ≥ 40 ≤ 100



300 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr Mo Y.S T.S. ELOG. HRB
  % % % % % % % % N/mm2 N/mm2 %
304 ≤ 0.08 ≤ 0.75 ≤ 2 ≤ 0.045 ≤ 0.03 8~10 18~20   ≥ 205 ≥ 520 ≥ 40 ≤ 90
301 ≤ 0.15 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 6~8 16~18   ≥ 205 ≥ 515 ≥ 40 ≤ 95
316 ≤ 0.08 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 10~14 16~18 2~3 ≥ 205 ≥ 515 ≥ 40 ≤ 90
316L ≤ 0.03 ≤ 1.00 ≤ 2 ≤ 0.045 ≤ 0.03 12~15 16~18 2~3 ≥ 170 ≥ 480 ≥ 40 ≤ 95



400 series:

level Chemical composition Mechanical properties
  C Si Mn P S Ni Cr N Cu Y.S T.S. ELOG. HRB
  % % % % % % % % % N/mm2 N/mm2 %
430 ≤ 0.12 ≤ 1.00 ≤ 1 ≤ 0.040 ≤ 0.030   16~18     ≥ 450 ≥ 205 ≥ 22 ≤ 88



3.Product Show

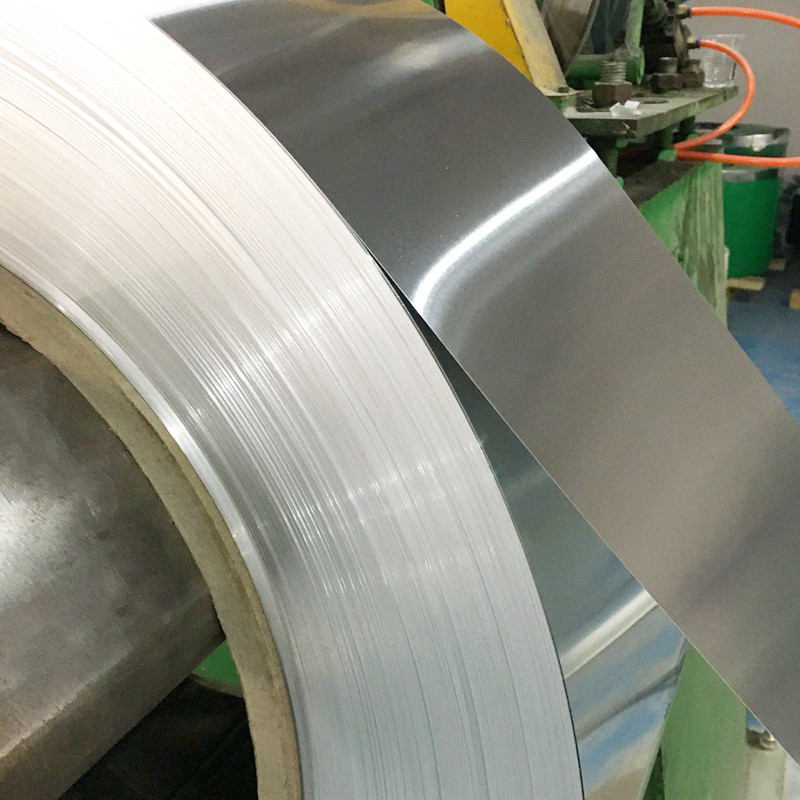

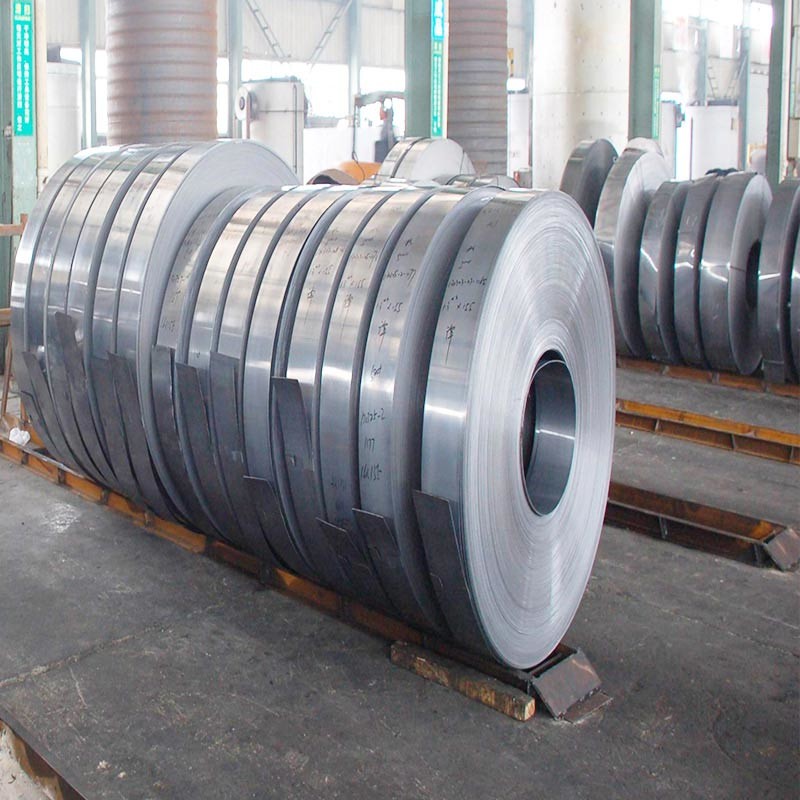

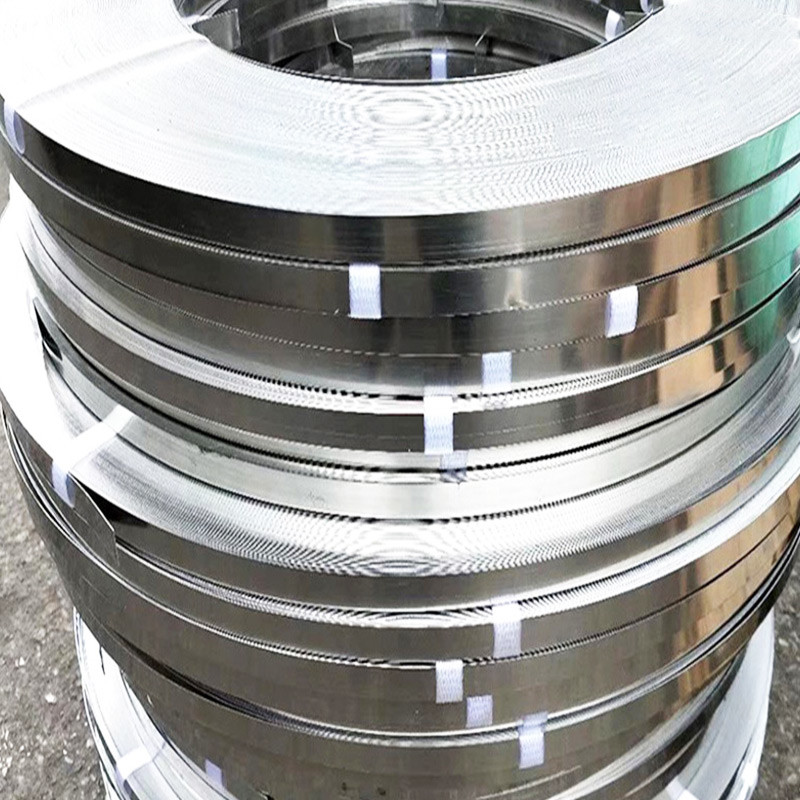

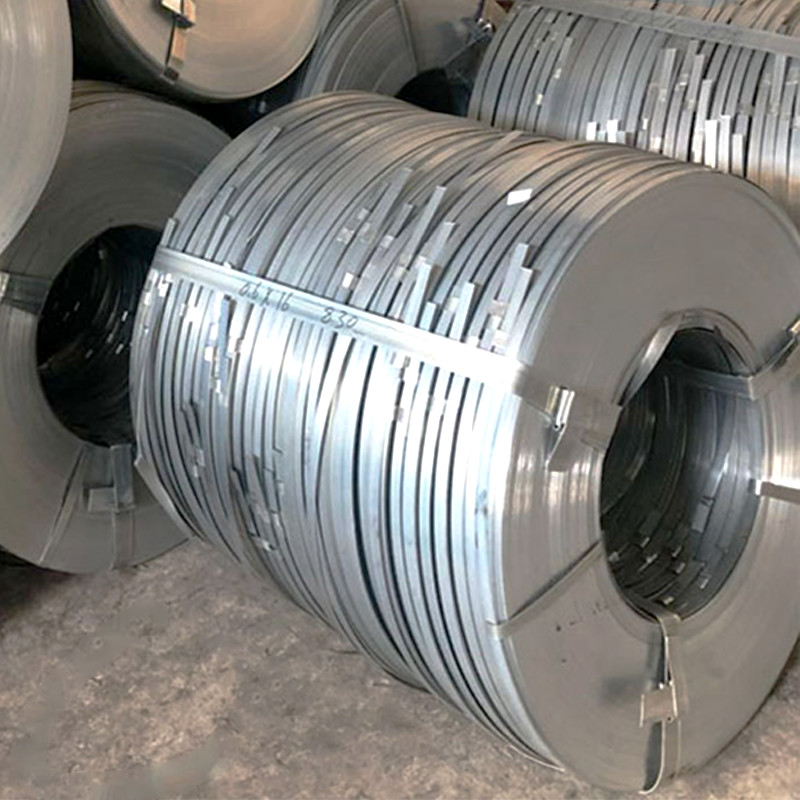

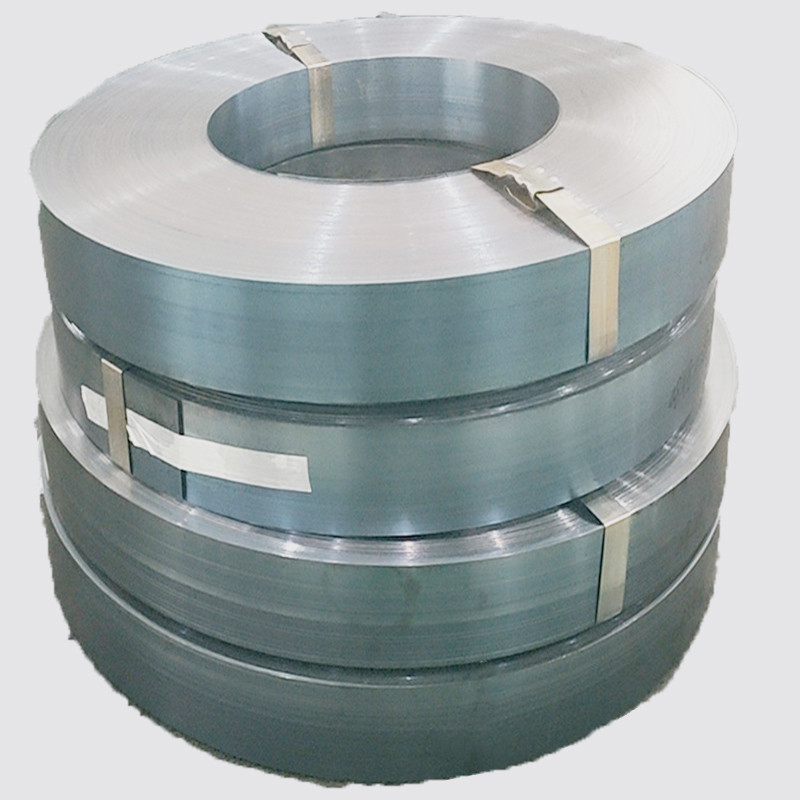

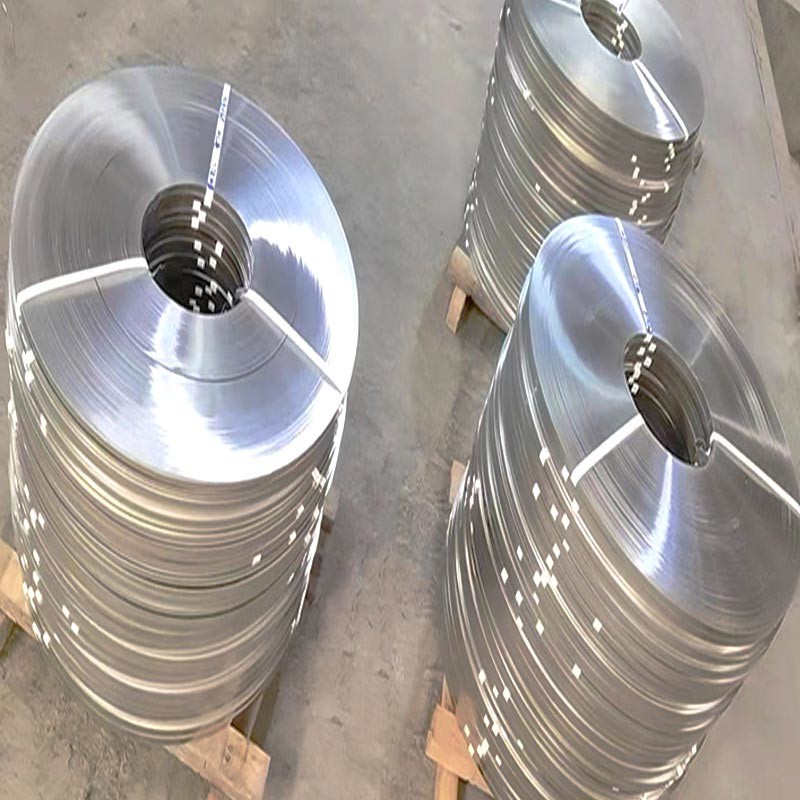

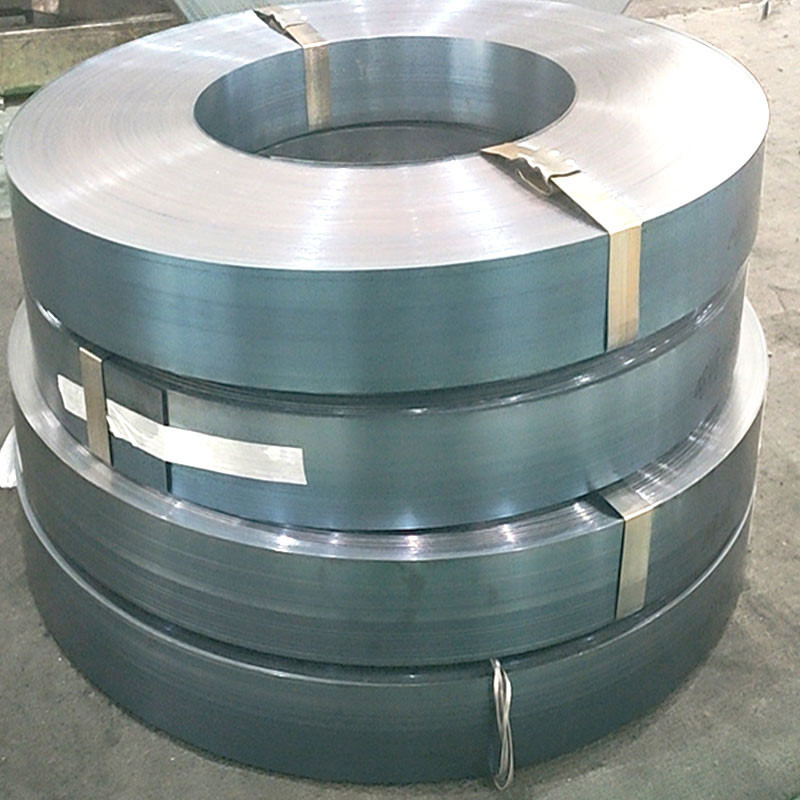

ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled 0ASTM 301 Stainless Steel Strip 2.5mm Building Structure Hot Rolled 1
