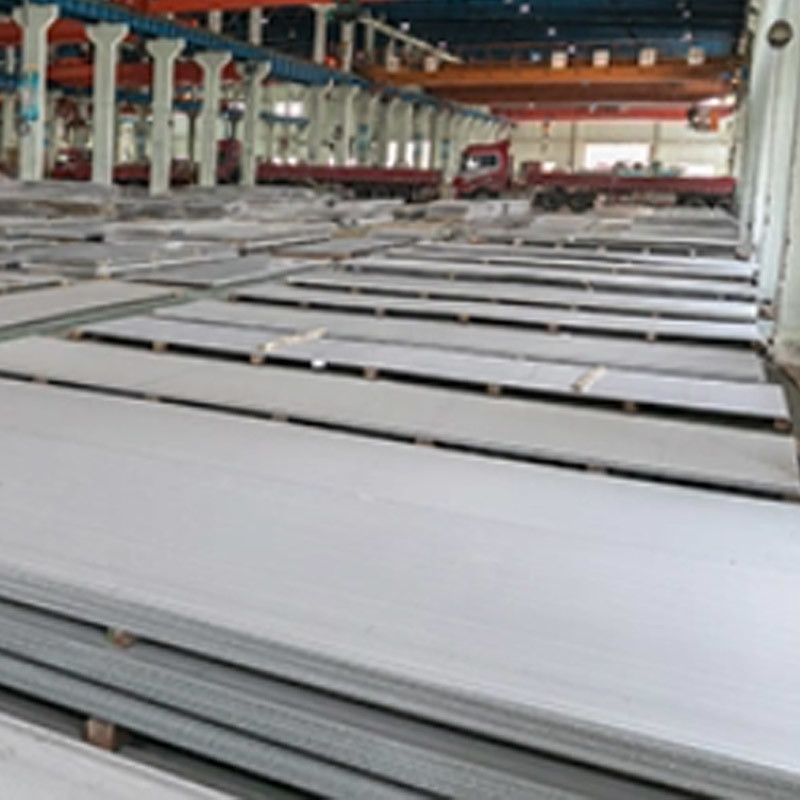

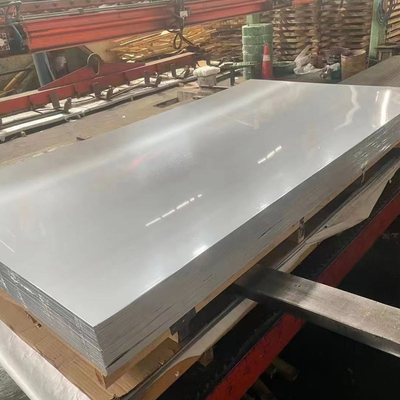

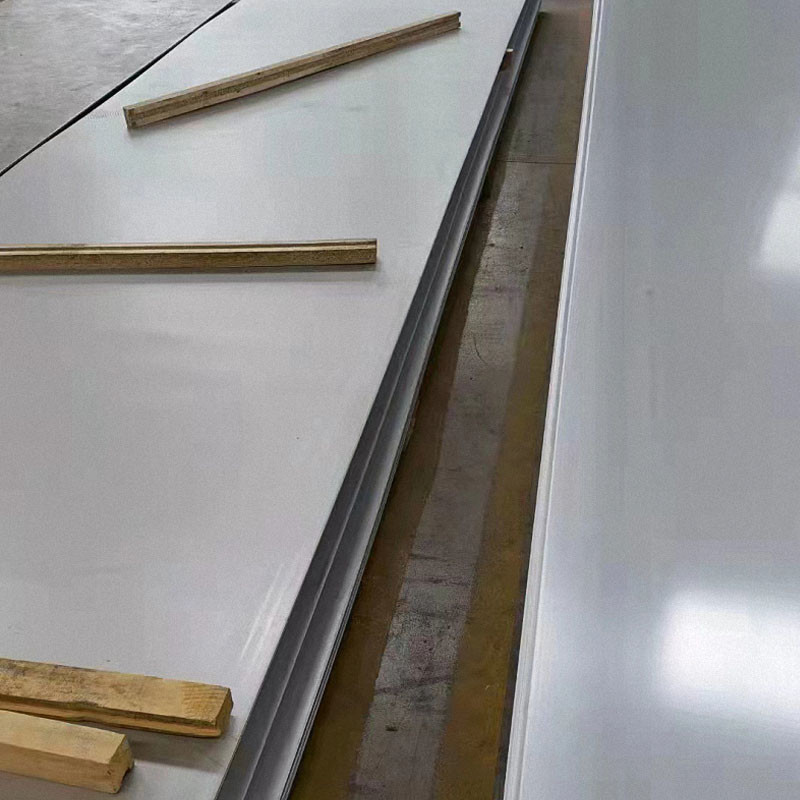

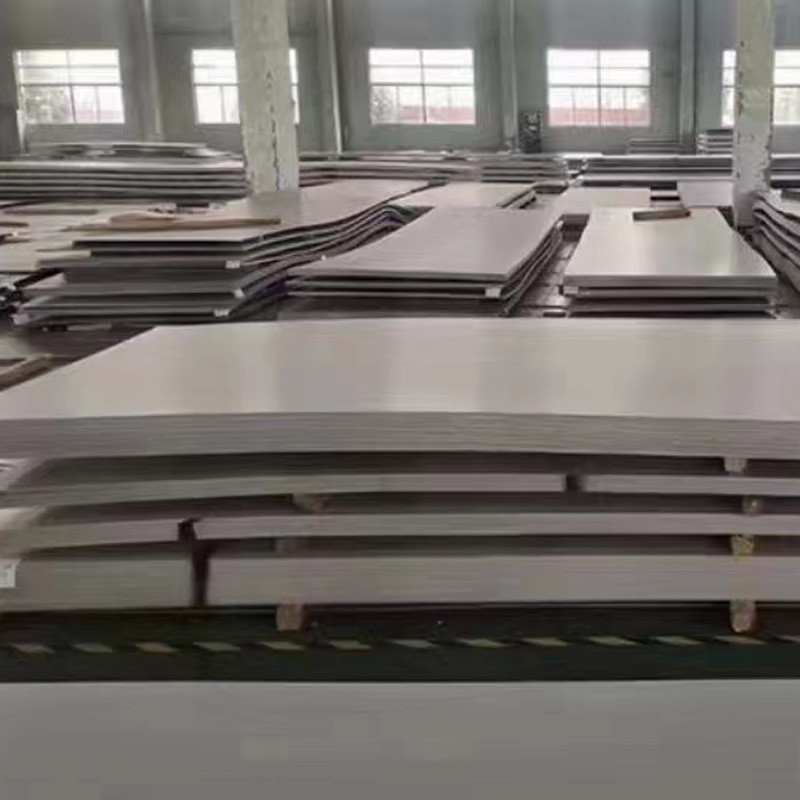

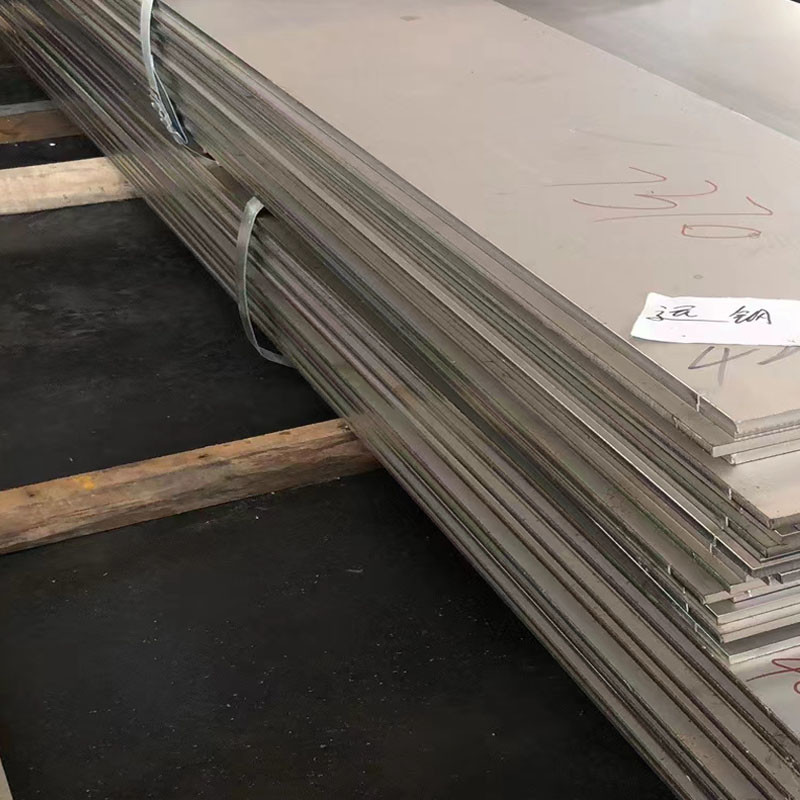

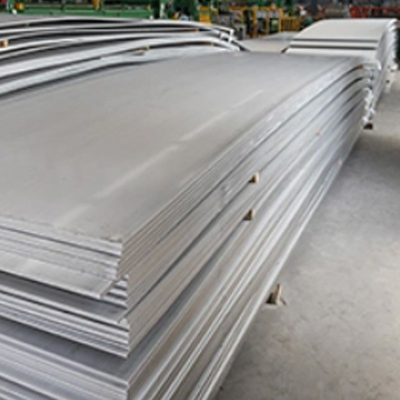

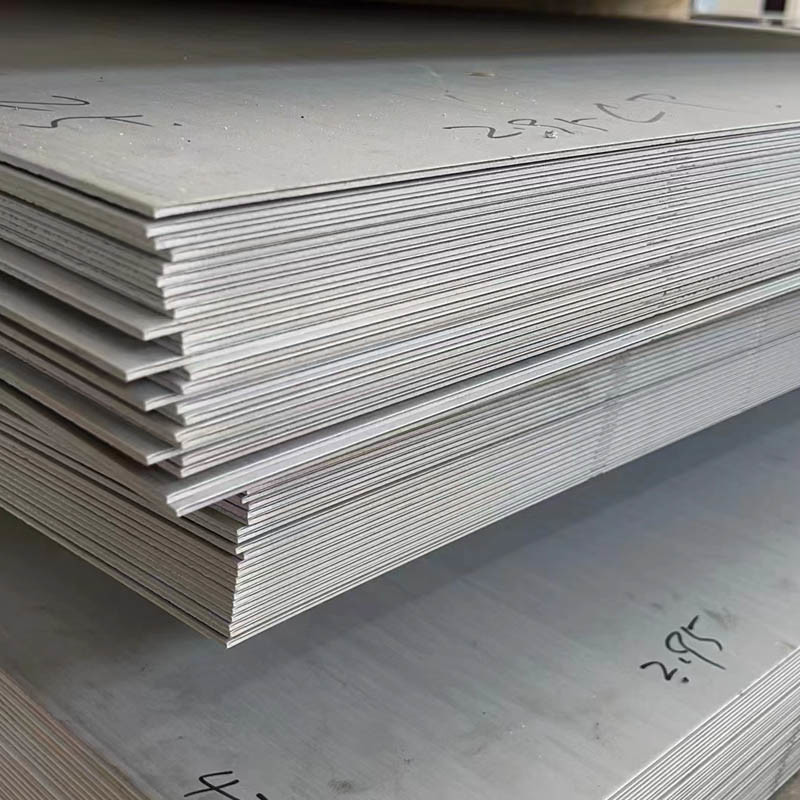

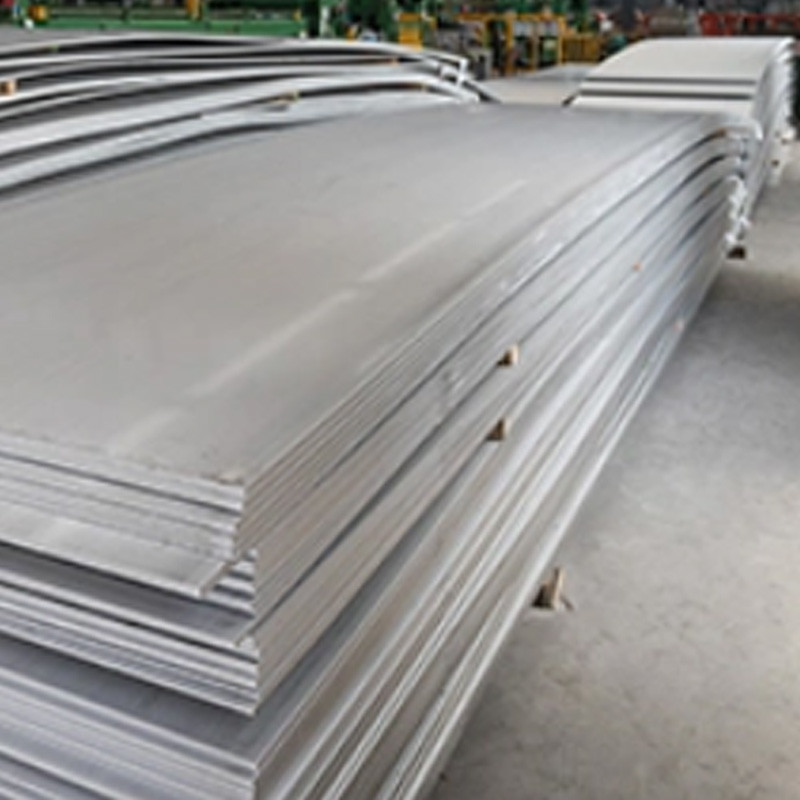

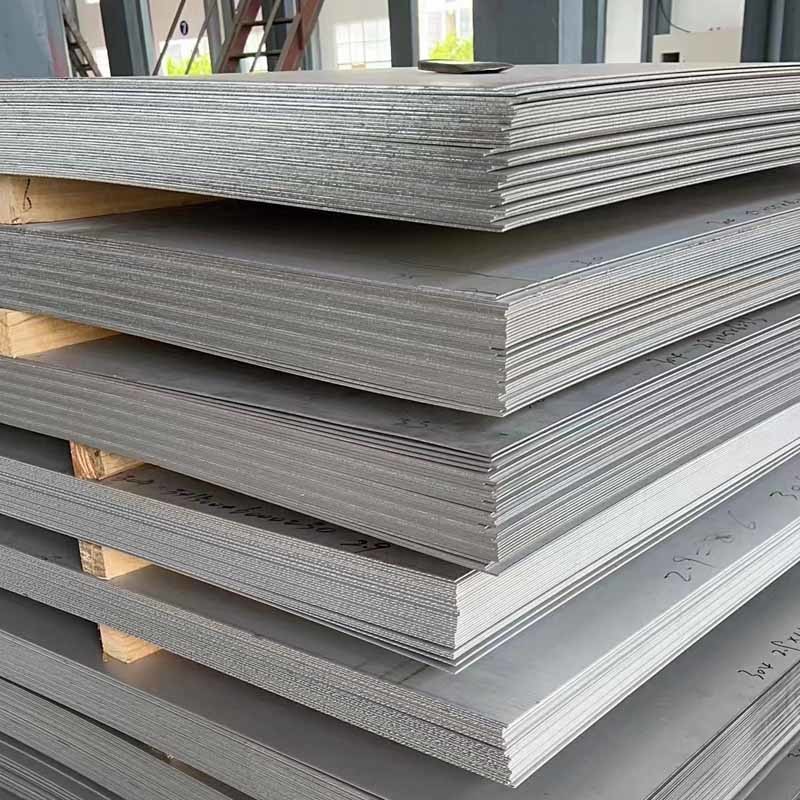

Hastelloy C-276 Building Material Alloy Plate for Chemical Processing
| Place of Origin | China |
|---|---|
| Brand Name | Chengjiu |
| Model Number | Hastelloy C-276 |
| Minimum Order Quantity | Negotiable, we can also accept sample orders. |
| Price | Negotiable |
| Packaging Details | According to the need |
| Delivery Time | Within 7-30 workdays after receiving deposit or L/C |
| Payment Terms | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability | 5000 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hastelloy Plate | Material | Hastelloy C-276 |
|---|---|---|---|
| Specifications | Can Be Customized | The Production Process | Cold And Hot Rolling |
You can tick the products you need and communicate with us in the message board.
| Product Classification：Hastelloy Alloy | |
|---|---|
| Material：Hastelloy C-276 | |
| Corresponding Brand Number | |
| New Name for High Temperature | |
| JIS | |
| Chemical Composition | |
| % | |
| Min | |
| Max | |
| Physical Properties | |
| Density g/cm² | |
| 8.885 | |
| Mechanical Properties：(The mechanical properties were tested at 20 °C) | |
| Heat Treatment Mode | |
| Solid Solution Treatment | |
| Production execution standard： | |
| Standards | |
| American Society for Materials and Testing | |
| American Technical Code for Aerospace Materials | |
| American Technical Code for Aerospace Materials |
Product Description
| Product Classification:Hastelloy Alloy | ||||||||||||
| Material:Hastelloy C-276 | ||||||||||||
| Corresponding Brand Number | ||||||||||||
| New Name for High Temperature | Old Name of High Temperature | New Name for Corrosion Resistance | Corrosion Resistant Old Name | National Brand Number | ||||||||
| NS3304 | 00Cr16Ni60Mo164 | |||||||||||
| JIS | ASTM | UNS, SAE | DIN | DIN | ||||||||
| Hastelloy C276 | N10276 | NiCrofer 5916hMoW | 2.4819 | |||||||||
| Chemical Composition | ||||||||||||
| % | C | Si | Mn | P | S | Ni | Cr | Mo | W | Fe | V | |
| Min | <0.02 | ≤0.08 | ≤1.0 | ≤0.04 | ≤0.03 | Allowance | 14.5 | 15 | 3 | 4 | ≤0.35 | |
| Max | / | / | / | / | / | / | 16.5 | 17 | 4.5 | 7 | ||
| Physical Properties | ||||||||||||
| Density g/cm² | Magnetic Properties | Thermal conductivity/w/(m.k) | Electrical resistivity | Specific heat capacity | Coefficient of linear expansion | |||||||
| 100~1092℃ | C)/(Ω.mm2/m) | ℃)/J/(kg.k)℃ | /(10-6/k) | |||||||||
| 20~649℃ | ||||||||||||
| 8.885 | / | 9.4-28 | 1.3 | 427 | 14.1 | |||||||
| Mechanical Properties:(The mechanical properties were tested at 20 °C) | ||||||||||||
| Heat Treatment Mode | Tensile Strength ob/MPa | Strength of Yield σp0.2/MPa | Rate of Elongation σ5 /% | Brinell Hardness HBS | ||||||||
| Solid Solution Treatment | 690 | 283 | 40 | --- | ||||||||
| Production execution standard: | ||||||||||||
| Standards | Bar of Steel | Forging Piece | Board (Strip) Material | Wire Material | Pipe Material | |||||||
| American Society for Materials and Testing | ASTM B574 | ASTM B564 | ASTM B575 | ASTM B622 ASTM B619 ASTM B626 |
||||||||
| American Technical Code for Aerospace Materials | ||||||||||||
| American Technical Code for Aerospace Materials | ASME SB574 | ASME SB564 | ASME SB575 | ASTM SB622 ASTM SB619 ASTM SB626 |
||||||||
