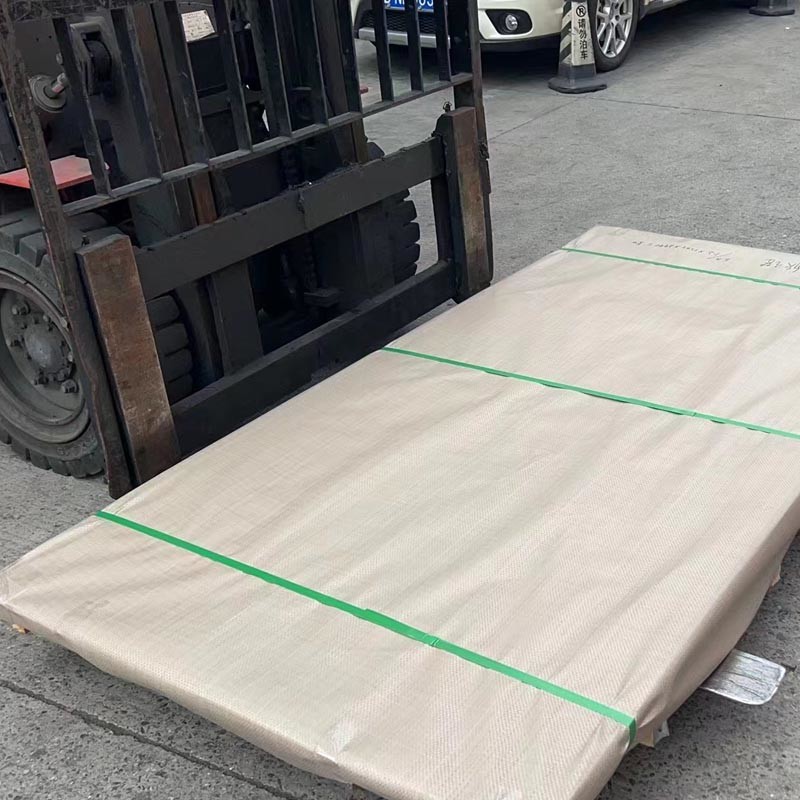

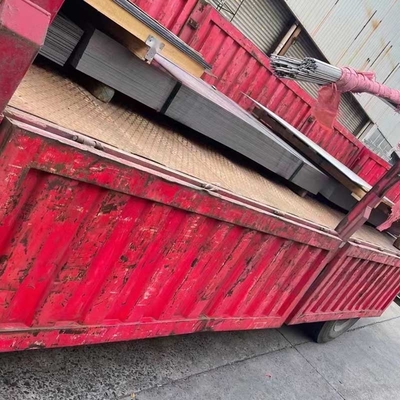

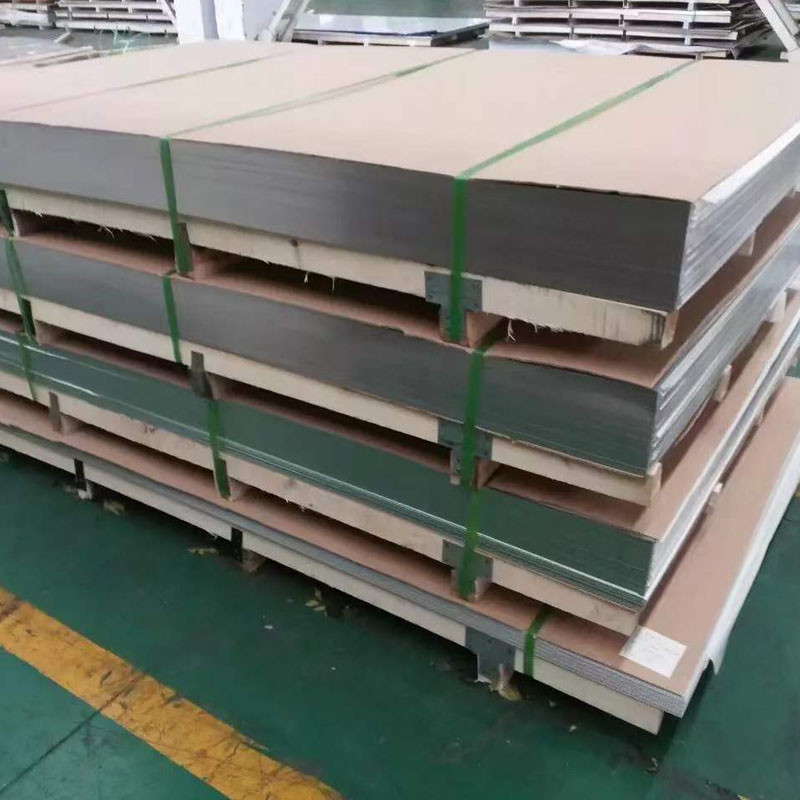

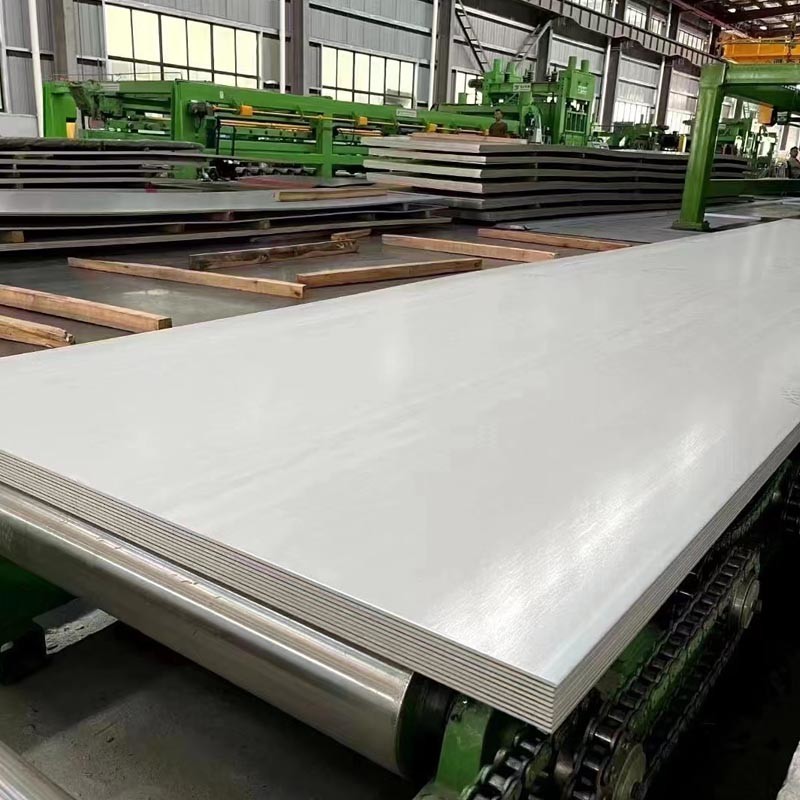

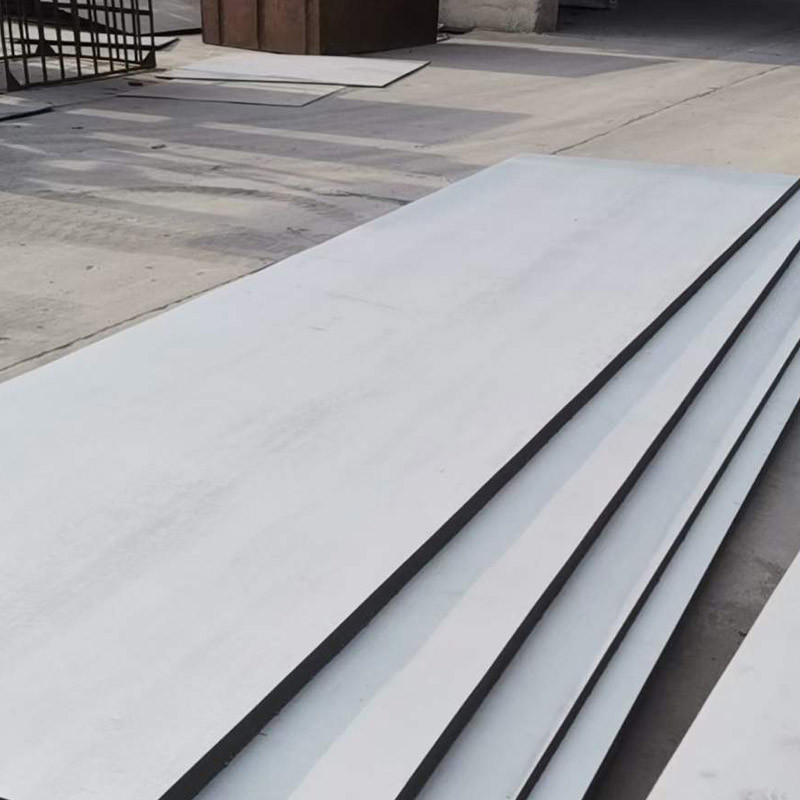

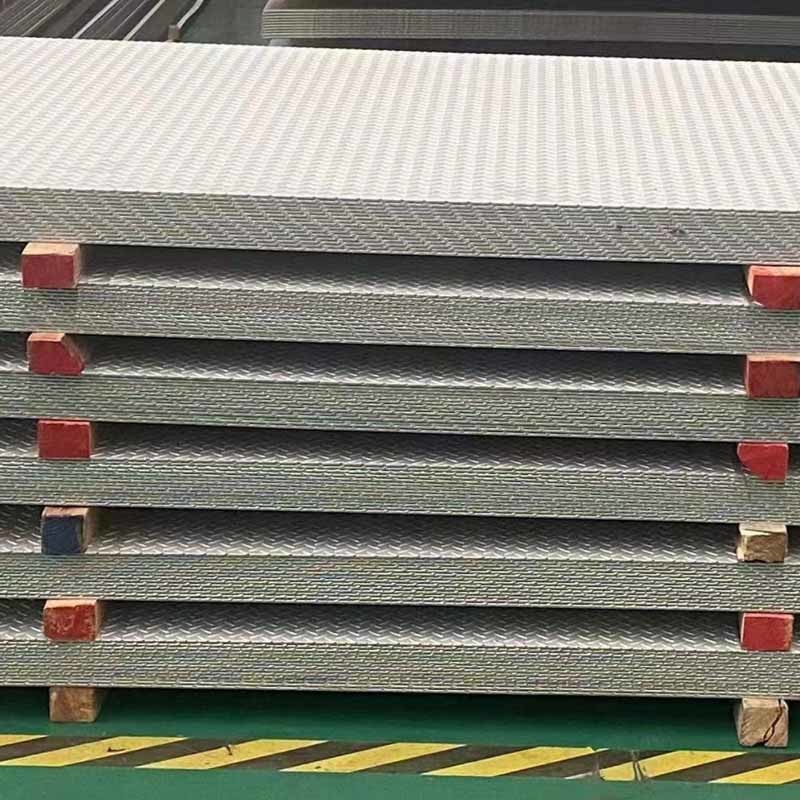

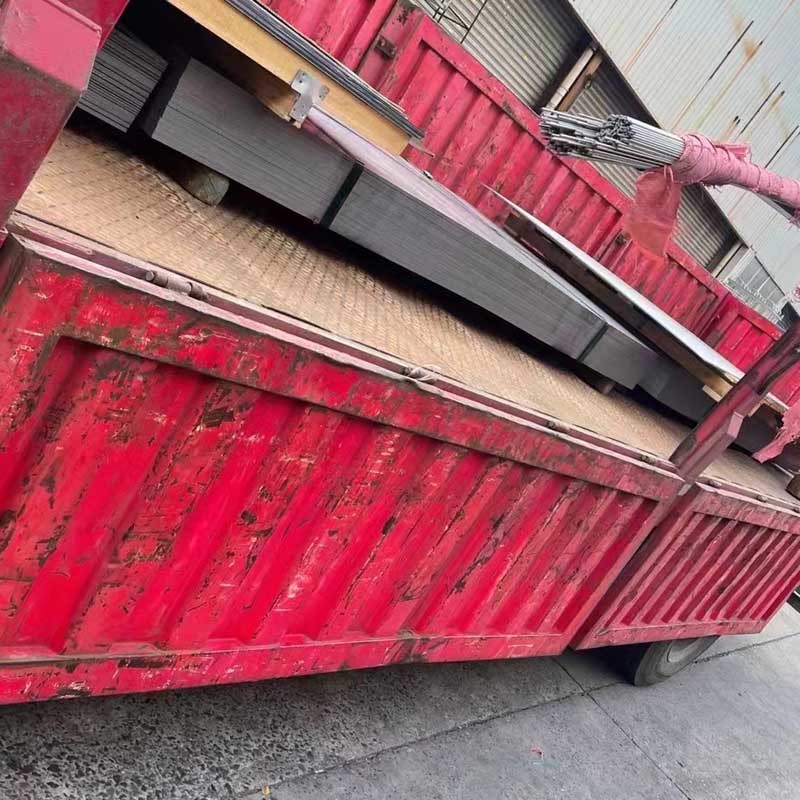

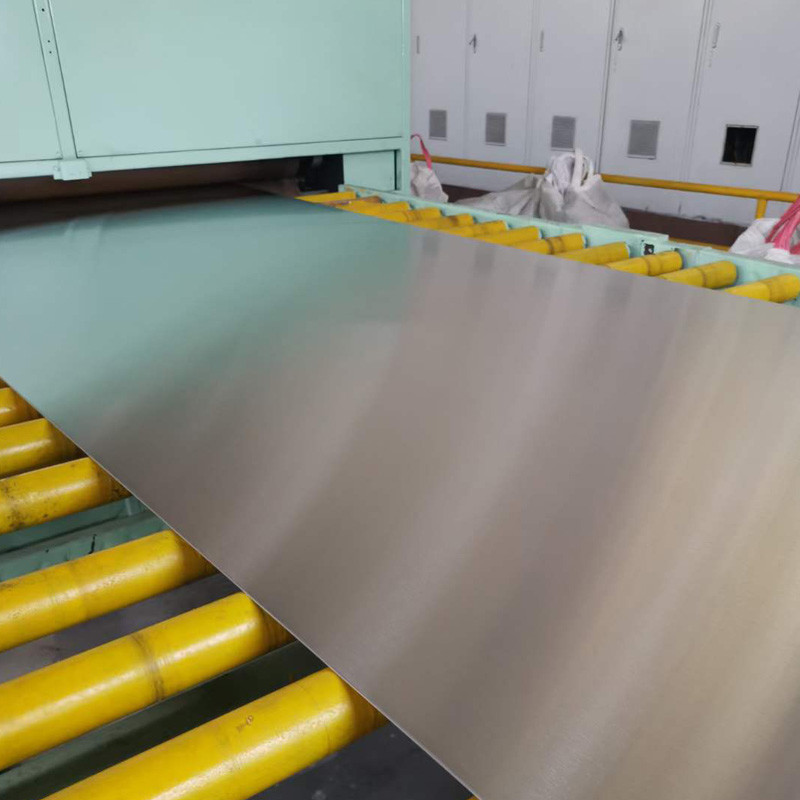

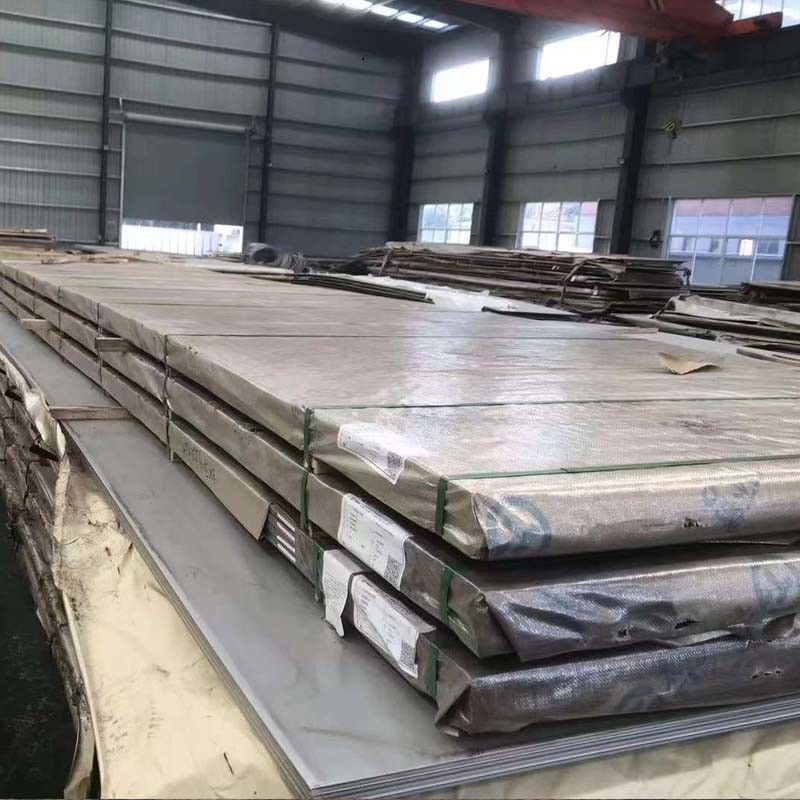

Hastelloy C-276 Alloy Plate/sheet

  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
  • Hastelloy C-276 Alloy Plate/sheet
Place of Origin China
Brand Name Chengjiu
Model Number Hastelloy C-276
Minimum Order Quantity Negotiable, we can also accept sample orders.
Price Negotiable
Packaging Details According to the need
Delivery Time Within 7-30 workdays after receiving deposit or L/C
Payment Terms L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability 5000 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hastelloy Plate Material Hastelloy C-276
Specifications Can Be Customized The Production Process Cold And Hot Rolling
You can tick the products you need and communicate with us in the message board.
Product Classification：Hastelloy Alloy
Material：Hastelloy C-276
Corresponding Brand Number
New Name for High Temperature
JIS
Chemical Composition
%
Min
Max
Physical Properties
Density g/cm²
8.885
Mechanical Properties：(The mechanical properties were tested at 20 °C)
Heat Treatment Mode
Solid Solution Treatment
Production execution standard：
Standards
American Society for Materials and Testing
American Technical Code for Aerospace Materials
American Technical Code for Aerospace Materials
Leave a Message
Product Classification：Hastelloy Alloy
Product Description







Product Classification:Hastelloy Alloy
Material:Hastelloy C-276
Corresponding Brand Number
New Name for High Temperature Old Name of High Temperature New Name for Corrosion Resistance Corrosion Resistant Old Name National Brand Number
    NS3304   00Cr16Ni60Mo164
JIS ASTM UNS, SAE DIN DIN
  Hastelloy C276 N10276 NiCrofer 5916hMoW 2.4819
Chemical Composition
% C Si Mn P S Ni Cr Mo W Fe V
Min <0.02 ≤0.08 ≤1.0 ≤0.04 ≤0.03 Allowance 14.5 15 3 4 ≤0.35
Max / / / / / / 16.5 17 4.5 7
Physical Properties
Density g/cm² Magnetic Properties Thermal conductivity/w/(m.k) Electrical resistivity Specific heat capacity Coefficient of linear expansion
100~1092℃ C)/(Ω.mm2/m) ℃)/J/(kg.k)℃ /(10-6/k)
    20~649℃
8.885 / 9.4-28 1.3 427 14.1
Mechanical Properties:(The mechanical properties were tested at 20 °C)
Heat Treatment Mode Tensile Strength ob/MPa Strength of Yield σp0.2/MPa Rate of Elongation σ5 /% Brinell Hardness HBS
Solid Solution Treatment 690 283 40 ---
Production execution standard:
Standards Bar of Steel Forging Piece Board (Strip) Material Wire Material Pipe Material
American Society for Materials and Testing ASTM B574 ASTM B564 ASTM B575   ASTM B622
ASTM B619
ASTM B626
American Technical Code for Aerospace Materials
American Technical Code for Aerospace Materials ASME SB574 ASME SB564 ASME SB575   ASTM SB622
ASTM SB619
ASTM SB626
